GARR GARR 27080

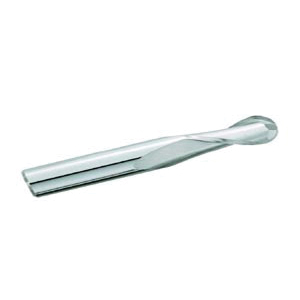

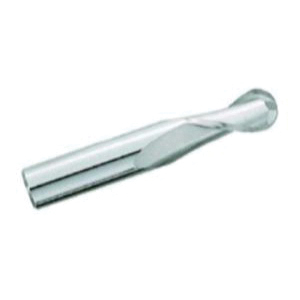

GARR 27080 380M Ball Nose Center Cutting End Mill, 7/16 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 7/16 in Dia Shank, 2-3/4 in OAL

UNSPSC: 27112803
Manufacturer PN: 27080
$43.04 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting, Series: 380M, 7/16 in Diameter Cutter, 2-3/4 in Overall Length, 1 in Length of Cut, 2 Flutes, Helix Flute, 7/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, Submicron Solid Carbide

  • Features

  • Tight tolerances for precision machining
  • Excellent for keyways
  • For use when matching tools are necessary
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
  • N/C tolerance

Specifications

Cutter Diameter7/16 in
Cutting DirectionRight Hand
Flute TypeHelix
Helix Angle30 deg
Length of Cut1 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length2-3/4 in
Series380M
Shank Diameter7/16 in
Shank TypeWeldon Flat
TypeBall Nose Center Cutting
