Kennametal KENN 4109947

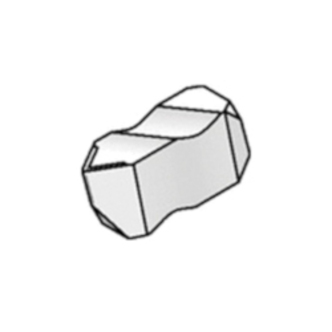

Kennametal 4109947 Top Notch Threading Insert, ANSI Code: NT3RK KCU25, NT Insert, 5 to 12 TPI Internal/6 to 20 TPI External TPI, Internal/External Thread, 60 deg Partial Profile Thread, 2 to 5 mm Internal/1.25 to 4 mm External Pitch

UNSPSC:
Manufacturer PN: 4109947
Factory Order
Estimated to ship in 14 days
--Price Unavailable--


Kennametal Threading Insert, Series: Top Notch, NT Insert, 3 Insert, Internal/External Thread, 60 deg Partial Profile Thread Standard, 2 to 5 mm Internal/1.25 to 4 mm External Pitch, 5 to 12 TPI Internal/6 to 20 TPI External Threads per Inch, 0.195 in Thickness, 0.344 in Width, ANSI Code: NT3RK KCU25, ISO Code: NT3RK KCU25, K Chipbreaker, Neutral Rake, 0.0065 in Corner Radius, 55 deg Included Angle, Manufacturers Grade: KCU25, Carbide, PVD-AlTiN Coated

Specifications

ANSI CodeNT3RK KCU25
ChipbreakerK
Corner Radius0.0065 in
FinishPVD-AlTiN Coated
Included Angle55 deg
Insert Size3
Insert StyleNT
ISO CodeNT3RK KCU25
Manufacturers GradeKCU25
MaterialCarbide
Pitch2 to 5 mm Internal/1.25 to 4 mm External
RakeNeutral
SeriesTop Notch
Thickness0.195 in
Thread Standard60 deg Partial Profile
Thread TypeInternal/External
Threads per Inch5 to 12 TPI Internal/6 to 20 TPI External
Width0.344 in
