Kennametal KENN 4033859

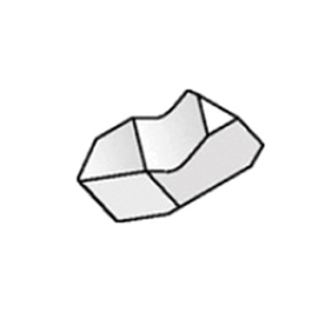

Kennametal 4033859 Top Notch Threading Insert, ANSI Code: NT1L KCU25, NT Insert, 12 to 24 TPI, Internal Thread, 60 deg Partial Profile Thread, 1 to 2 mm Pitch, Manufacturers Grade: KCU25

UNSPSC:
Manufacturer PN: 4033859
Factory Order
Estimated to ship in 14 days
--Price Unavailable--


Kennametal Threading Insert, Series: Top Notch, NT Insert, 1 Insert, Internal Thread, 60 deg Partial Profile Thread Standard, 1 to 2 mm Pitch, 12 to 24 Threads per Inch, 0.1 in Thickness, 0.1 in Width, ANSI Code: NT1L KCU25, ISO Code: NT1L KCU25, Neutral Rake, 0.003 in Corner Radius, 55 deg Included Angle, Manufacturers Grade: KCU25, Carbide, PVD-AlTiN Coated

Specifications

ANSI CodeNT1L KCU25
Corner Radius0.003 in
FinishPVD-AlTiN Coated
Included Angle55 deg
Insert Size1
Insert StyleNT
ISO CodeNT1L KCU25
Manufacturers GradeKCU25
MaterialCarbide
Pitch1 to 2 mm
RakeNeutral
SeriesTop Notch
Thickness0.1 in
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch12 to 24
Width0.1 in
