Iscar ISCAR 6497832

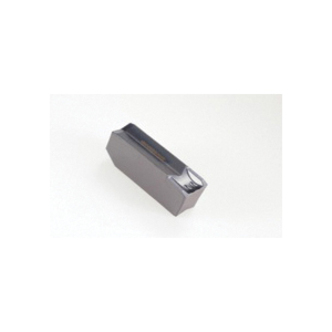

Iscar 6497832 CUT-GRIP Parting Insert, 4C Insert, GIM Insert, Material Grade: H, K, M, P, S, 4 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Gim 4c Ic908
Factory Order

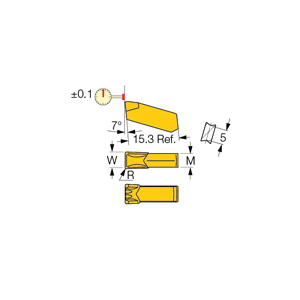

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 4C Insert, 4 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 14.99 mm Length, C Chipbreaker, 0.25 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: GIM 4C IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.25 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size4C
Insert StyleGIM
ISO CodeGIM 4C IC908
Lead Angle DirectionNeutral
Length14.99 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIL
