Iscar ISCAR 6404053

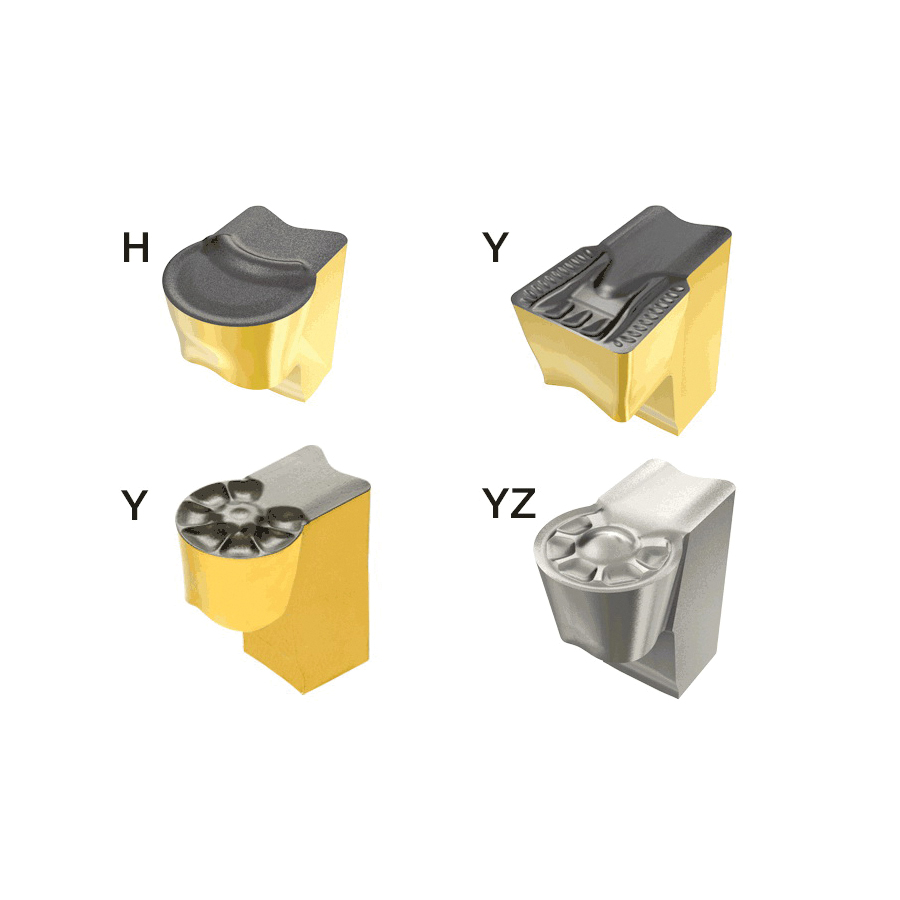

Iscar 6404053 SUMO-GRIP Parting Insert, 808Y Insert, TAGB Insert, Material Grade: H, K, M, P, S, 8 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC808, PVD Coated
Invoice description:
Tagb 808y Ic808
Factory Order

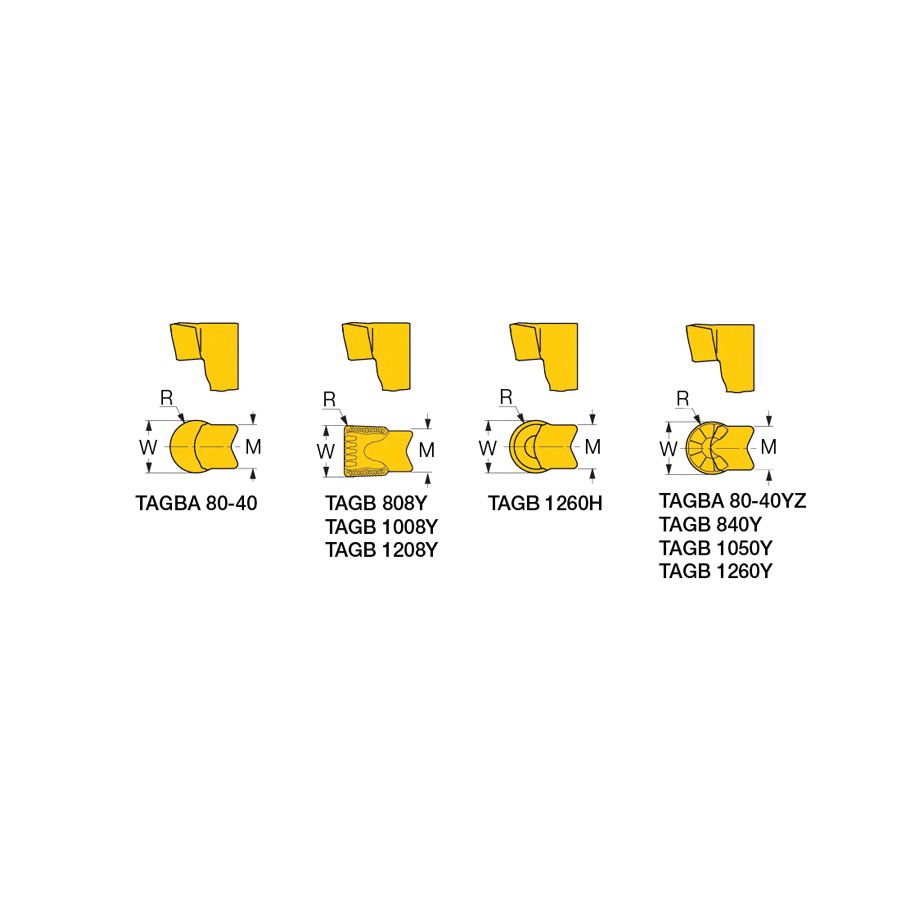

Iscar Parting Insert, Series: SUMO-GRIP, TAGB Insert, 808Y Insert, 8 mm Cutting Width, Neutral Lead Angle Direction, Rectangle Shape, 8 mm Width, Y Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: TAGB 808Y IC808, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- Used for tough applications and hard materials
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new SUMO TEC TiAlN PVD coating
- Provides high wear resistance
- Recommended for a very wide range of materials
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerY
Corner Radius0.8 mm
Cutting Width8 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size808Y
Insert StyleTAGB
ISO CodeTAGB 808Y IC808
Lead Angle DirectionNeutral
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
SeriesSUMO-GRIP
ShapeRectangle
Width8 mm
Additional Information
Country of OriginIL
