Iscar ISCAR 6403184

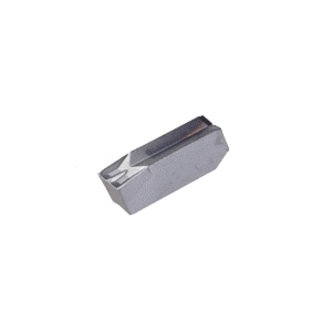

Iscar 6403184 CUT-GRIP Parting Insert, 3.2 Insert, GIM Insert, Material Grade: H, K, M, P, S, 3.2 mm W Cutting, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Gim 3.2 Ic908
Factory Order

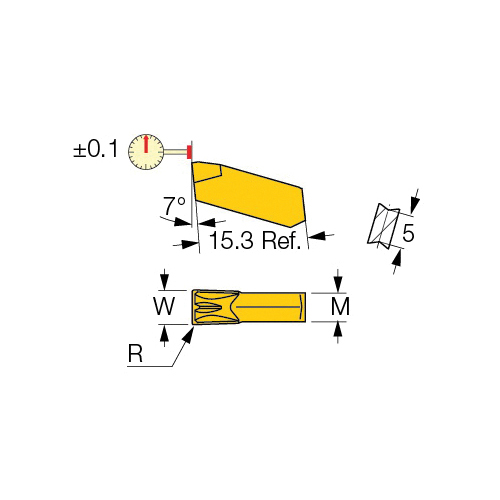

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3.2 Insert, 3.2 mm Cutting Width, 7 deg Relief Angle, Rectangle Shape, 3.2 mm Width, 0.22 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: GIM 3.2 IC908, 90 deg Included Angle, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- W-type chipformer, with a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Corner Radius0.22 mm
Cutting Width3.2 mm
FinishPVD Coated
Included Angle90 deg
Insert Size3.2
Insert StyleGIM
ISO CodeGIM 3.2 IC908
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3.2 mm
