Iscar ISCAR 6403178

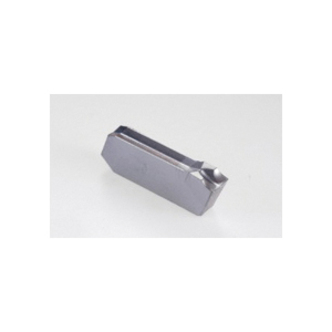

Iscar 6403178 CUT-GRIP Parting Insert, 3J Insert, GIM Insert, Material Grade: H, K, M, P, S, 3 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Gim 3j Ic908
Factory Order
Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3J Insert, 3 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 0.602 in Length, J Chipbreaker, 0.25 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: GIM 3J IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.25 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3J
Insert StyleGIM
ISO CodeGIM 3J IC908
Lead Angle DirectionNeutral
Length0.602 in
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
