Iscar ISCAR 6403176

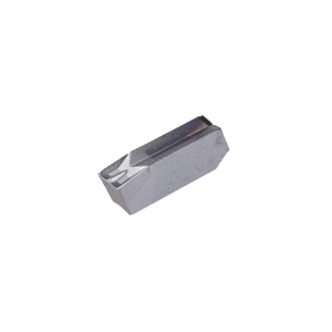

Iscar 6403176 CUT-GRIP Parting Insert, 3.2-8RA Insert, GIM Insert, Material Grade: H, K, M, P, S, 3.2 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Gim 3.2-8ra Ic908
Factory Order

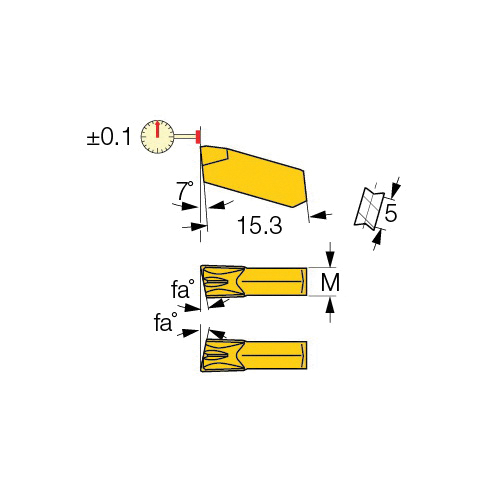

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3.2-8RA Insert, 3.2 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.2 mm Width, 0.602 in Length, A Chipbreaker, 0.22 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: GIM 3.2-8RA IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- W-type chipformer, with a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerA
Corner Radius0.22 mm
Cutting Width3.2 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3.2-8RA
Insert StyleGIM
ISO CodeGIM 3.2-8RA IC908
Lead Angle8 deg
Lead Angle DirectionRight Hand
Length0.602 in
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3.2 mm
Additional Information
Country of OriginIL
