Iscar ISCAR 6403172

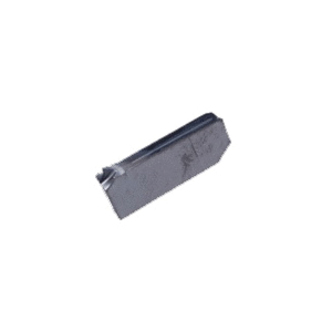

Iscar 6403172 CUT-GRIP Parting Insert, 3J-8RA Insert, GIM Insert, Material Grade: H, K, M, P, S, 3 mm W Cutting, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Gim 3j-8ra Ic908
Factory Order
Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3J-8RA Insert, 3 mm Cutting Width, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 15.29 mm Length, J/A Chipbreaker, 0.25 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: GIM 3J-8RA IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ/A
Corner Radius0.25 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3J-8RA
Insert StyleGIM
ISO CodeGIM 3J-8RA IC908
Lead Angle DirectionRight Hand
Length15.29 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
