Iscar ISCAR 6403169

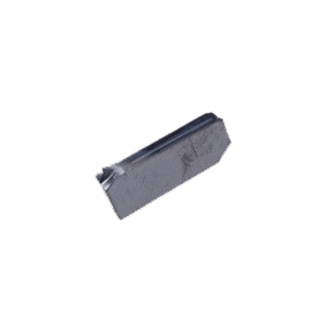

Iscar 6403169 CUT-GRIP Parting Insert, 3JS-15RA Insert, GIM Insert, Material Grade: H, K, M, N, P, S, 3 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Gim 3js-15ra Ic908
Factory Order

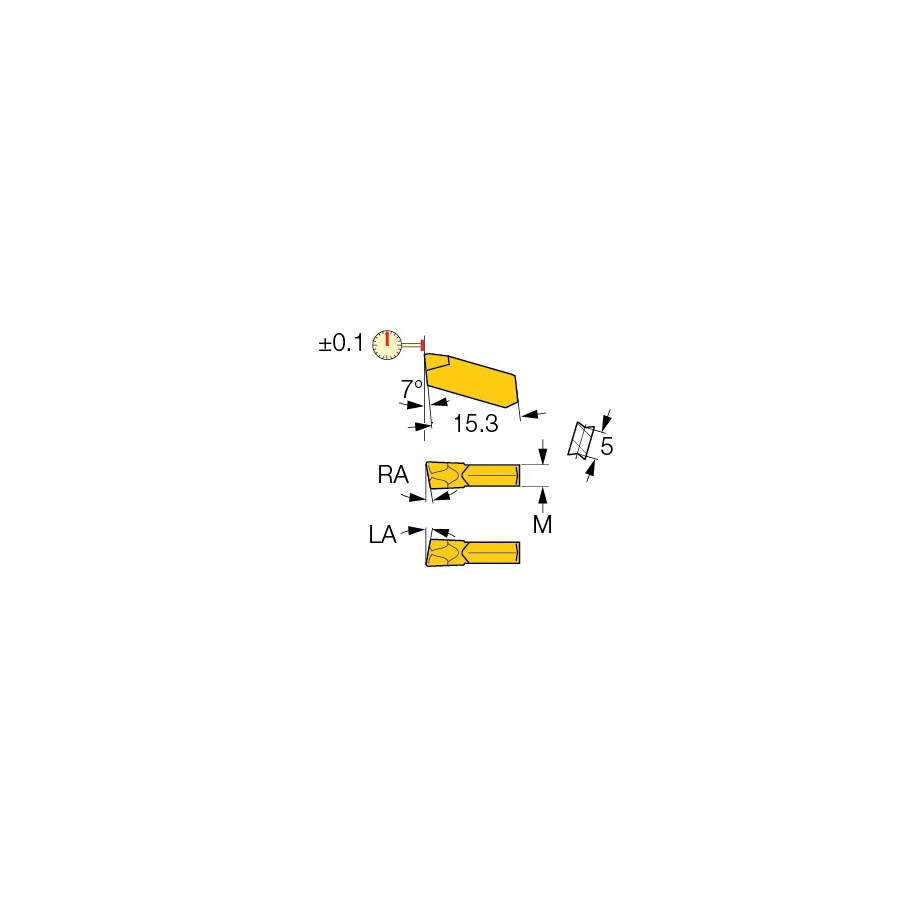

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3JS-15RA Insert, 3 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 15.3 mm Length, JS Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: GIM 3JS-15RA IC908, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Groove Turning, Internal Grooving and Slitting
ChipbreakerJS
Corner Radius0.02 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size3JS-15RA
Insert StyleGIM
ISO CodeGIM 3JS-15RA IC908
Lead Angle DirectionNeutral
Length15.3 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIS
