Iscar ISCAR 6403167

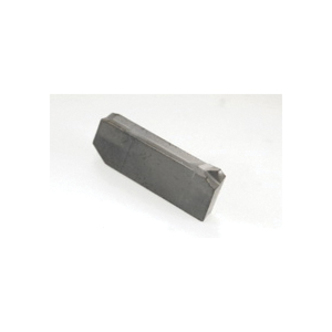

Iscar 6403167 CUT-GRIP Parting Insert, 2.2JS-15RA Insert, GIM Insert, Material Grade: H, K, M, P, S, 2.2 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Gim 2.2js-15ra Ic908
Factory Order

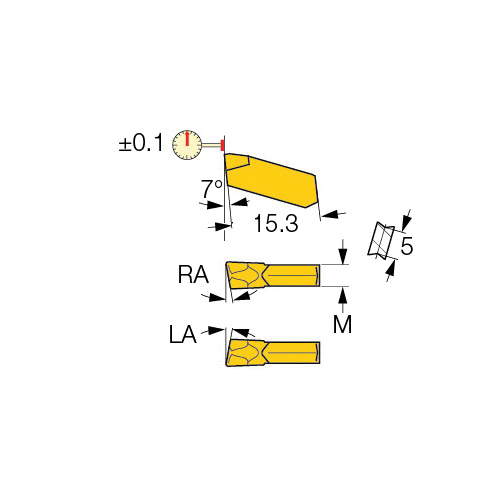

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 2.2JS-15RA Insert, 2.2 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 15.3 mm Length, JS/A Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: GIM 2.2JS-15RA IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJS/A
Corner Radius0.02 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size2.2JS-15RA
Insert StyleGIM
ISO CodeGIM 2.2JS-15RA IC908
Lead Angle15 deg
Lead Angle DirectionRight Hand
Length15.3 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
