Iscar ISCAR 6402291

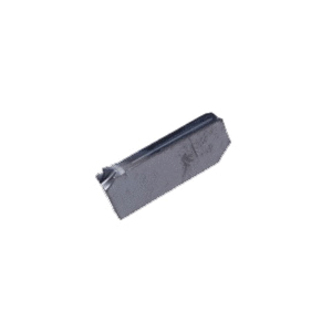

Iscar 6402291 CUT-GRIP Parting Insert, 3J-8RA Insert, GIM Insert, Material Grade: M, P, 3 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Gim 3j-8ra Ic354
Factory Order
Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3J-8RA Insert, 3 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, J/A Chipbreaker, 0.25 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GIM 3J-8RA IC354, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ/A
Corner Radius0.25 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3J-8RA
Insert StyleGIM
ISO CodeGIM 3J-8RA IC354
Lead Angle8 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
