Iscar ISCAR 6402275

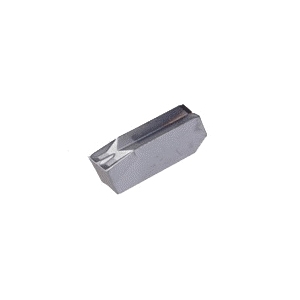

Iscar 6402275 CUT-GRIP Parting Insert, 3.2-4LA Insert, GIM Insert, Material Grade: M, P, 3.2 mm W Cutting, 4 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Factory Order

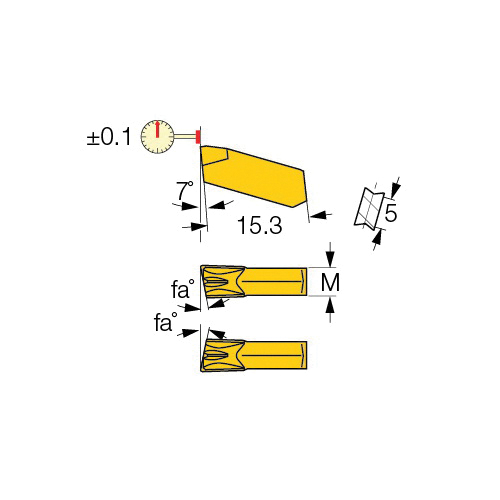

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3.2-4LA Insert, 3.2 mm Cutting Width, 4 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.2 mm Width, A Chipbreaker, 0.22 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GIM 3.2-4LA IC354, 90 deg Included Angle, Left Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- W-type chipformer, with a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerA
Corner Radius0.22 mm
Cutting Width3.2 mm
FinishPVD Coated
Hand of InsertLeft
Included Angle90 deg
Insert Size3.2-4LA
Insert StyleGIM
ISO CodeGIM 3.2-4LA IC354
Lead Angle4 deg
Lead Angle DirectionLeft Hand
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3.2 mm
