Iscar ISCAR 6402267

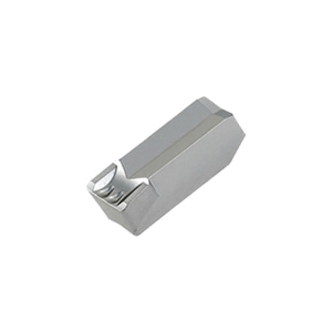

Iscar 6402267 CUT-GRIP Parting Insert, 5C Insert, GIM Insert, Material Grade: M, P, 5 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Gim 5c Ic354
Factory Order
Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 5C Insert, 5 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 5 mm Width, C Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GIM 5C IC354, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds

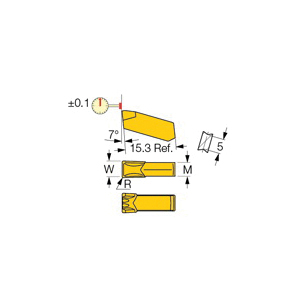

Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.4 mm
Cutting Width5 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size5C
Insert StyleGIM
ISO CodeGIM 5C IC354
Lead Angle DirectionNeutral
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width5 mm
Additional Information
Country of OriginIL
