Iscar ISCAR 6402138

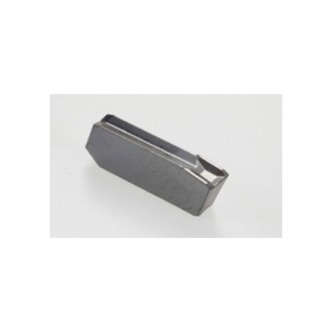

Iscar 6402138 CUT-GRIP Parting Insert, 3C Insert, GIM Insert, Material Grade: M, P, S, 3 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated

Invoice description: Gim 3c Ic328

UNSPSC: 23242107

Manufacturer PN: 6402138

^$20.78 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

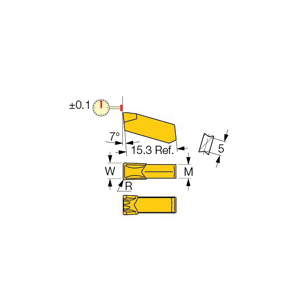

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3C Insert, 3 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, C Chipbreaker, 0.22 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GIM 3C IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S

Features
First choice for the parting of bars, hard materials and tough applications
A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
Medium-to-high feeds
IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
