Iscar ISCAR 6402099

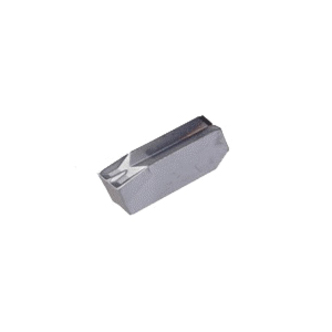

Iscar 6402099 CUT-GRIP Parting Insert, 3.2 Insert, GIM Insert, Material Grade: M, P, S, 3.2 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Gim 3.2 Ic328
Factory Order

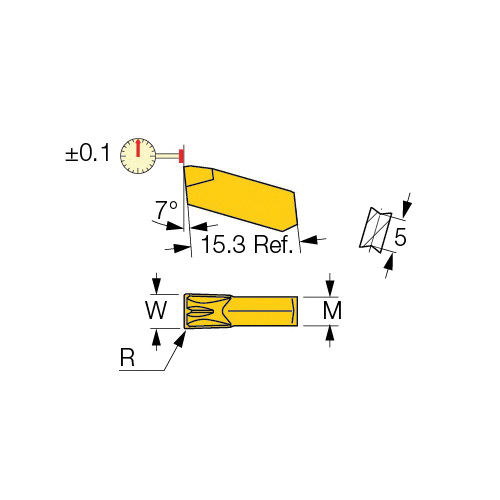

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3.2 Insert, 3.2 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.2 mm Width, 0.22 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GIM 3.2 IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- W-type chipformer, with a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Corner Radius0.22 mm
Cutting Width3.2 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3.2
Insert StyleGIM
ISO CodeGIM 3.2 IC328
Lead Angle DirectionNeutral
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3.2 mm
Additional Information
Country of OriginIL
