Iscar ISCAR 6402033

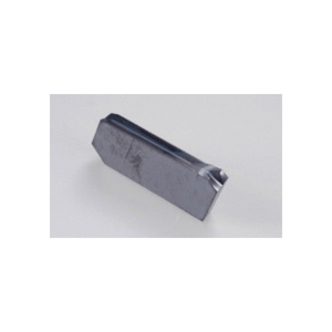

Iscar 6402033 CUT-GRIP Parting Insert, 2.2JS-15RA Insert, GIM Insert, Material Grade: M, P, S, 2.2 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Gim 2.2js-15ra Ic328
Factory Order
Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 2.2JS-15RA Insert, 2.2 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, JS/A Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GIM 2.2JS-15RA IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions

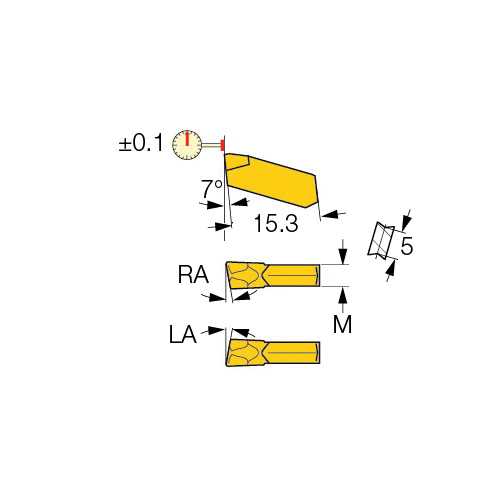

Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJS/A
Corner Radius0.02 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size2.2JS-15RA
Insert StyleGIM
ISO CodeGIM 2.2JS-15RA IC328
Lead Angle15 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
