Iscar ISCAR 6401837

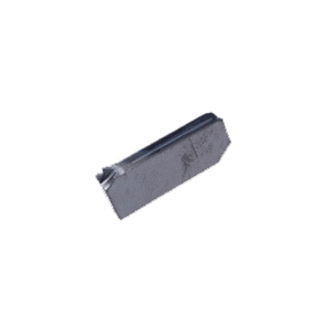

Iscar 6401837 CUT-GRIP Parting Insert, ANSI Code: GIM 3J-8RA, GIM Insert, 7 deg Relief Angle, Manufacturers Grade: IC20
Invoice description:
Gim 3j-8ra Ic20
Factory Order
Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 7 deg Relief Angle, 3 mm Width, 0.25 mm Corner Radius, Manufacturers Grade: IC20, ANSI Code: GIM 3J-8RA, ISO Code: GIM-J-RA/LA
Features
- First choice for soft materials, parting of tubes, small diameters and thin-walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
Specifications
ANSI CodeGIM 3J-8RA
Corner Radius0.25 mm
Insert StyleGIM
ISO CodeGIM-J-RA/LA
Manufacturers GradeIC20
Relief Angle7 deg
SeriesCUT-GRIP
Width3 mm
