Iscar ISCAR 6401827

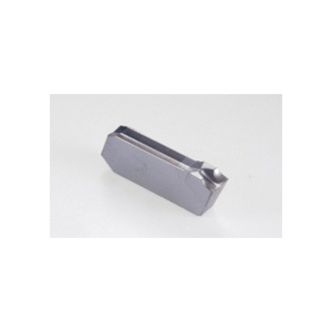

Iscar 6401827 CUT-GRIP Parting Insert, 3J Insert, GIM Insert, Material Grade: H, K, M, N, S, 3 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Gim 3j Ic20
Factory Order

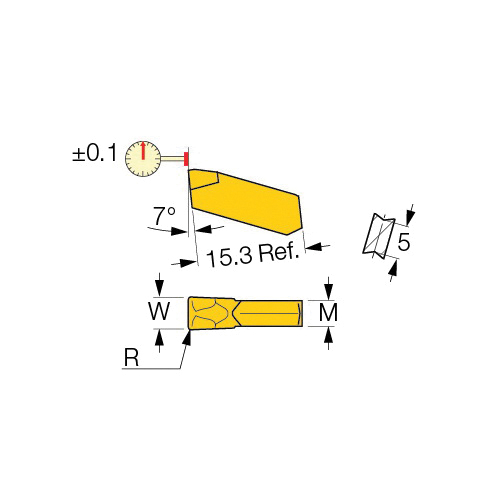

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3J Insert, 3 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, J Chipbreaker, 0.25 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GIM 3J IC20, 90 deg Included Angle, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.25 mm
Cutting Width3 mm
FinishUncoated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3J
Insert StyleGIM
ISO CodeGIM 3J IC20
Lead Angle DirectionNeutral
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
