Iscar ISCAR 6401769

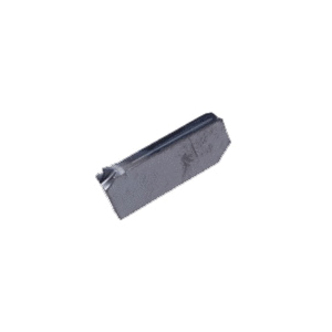

Iscar 6401769 CUT-GRIP Parting Insert, 2.2J-8RA Insert, GIM Insert, Material Grade: M, P, 2.2 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC656, CVD Coated
Invoice description:
Gim 2.2j-8ra Ic656
Factory Order
Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 2.2J-8RA Insert, 2.2 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, J/A Chipbreaker, 0.17 mm Corner Radius, Manufacturers Grade: IC656, ISO Code: GIM 2.2J-8RA IC656, 90 deg Included Angle, Right Hand of Insert, Carbide, CVD Coated, Material Grade: M, P
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC656 grade - a CVD-coated grade used for semi-roughing and medium machining at medium speed and high to-medium feed of carbon, tool and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ/A
Corner Radius0.17 mm
Cutting Width2.2 mm
FinishCVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size2.2J-8RA
Insert StyleGIM
ISO CodeGIM 2.2J-8RA IC656
Lead Angle8 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC656
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
