Iscar ISCAR 6401767

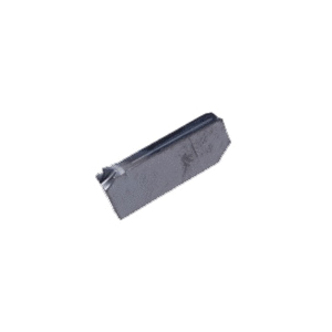

Iscar 6401767 CUT-GRIP Parting Insert, 2.2J-8RA Insert, GIM Insert, Material Grade: H, K, M, N, S, 2.2 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Gim 2.2j-8ra Ic20
Factory Order

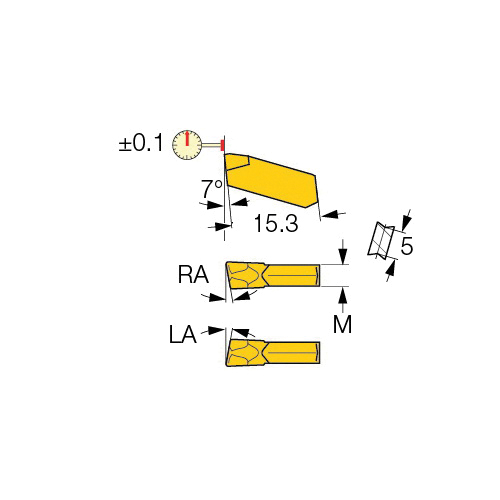

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 2.2J-8RA Insert, 2.2 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 15.3 mm Length, J/A Chipbreaker, 0.17 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GIM 2.2J-8RA IC20, 90 deg Included Angle, Right Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ/A
Corner Radius0.17 mm
Cutting Width2.2 mm
FinishUncoated
Hand of InsertRight
Included Angle90 deg
Insert Size2.2J-8RA
Insert StyleGIM
ISO CodeGIM 2.2J-8RA IC20
Lead Angle8 deg
Lead Angle DirectionRight Hand
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
