Iscar ISCAR 6400388

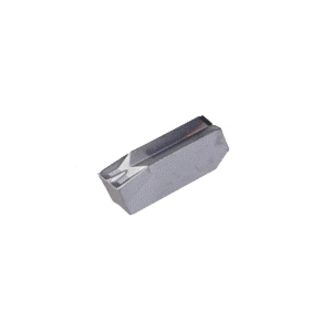

Iscar 6400388 CUT-GRIP Parting Insert, 3.2-8RA Insert, GIM Insert, Material Grade: H, K, M, N, S, 3.2 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Gim 3.2-8ra Ic20
Factory Order

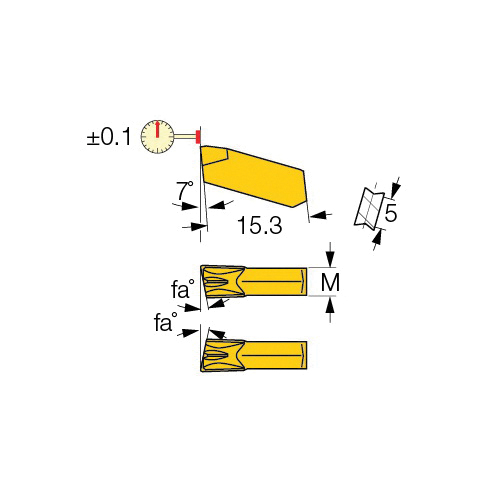

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3.2-8RA Insert, 3.2 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.2 mm Width, A Chipbreaker, 0.22 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GIM 3.2-8RA IC20, 90 deg Included Angle, Right Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- W-type chipformer, with a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerA
Corner Radius0.22 mm
Cutting Width3.2 mm
FinishUncoated
Hand of InsertRight
Included Angle90 deg
Insert Size3.2-8RA
Insert StyleGIM
ISO CodeGIM 3.2-8RA IC20
Lead Angle8 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3.2 mm
Additional Information
Country of OriginIL
