Iscar ISCAR 6400369

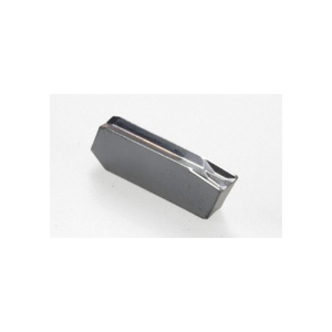

Iscar 6400369 CUT-GRIP Parting Insert, 3 Insert, GIM Insert, Material Grade: H, K, M, N, S, 3 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Gim 3 Ic20
Factory Order

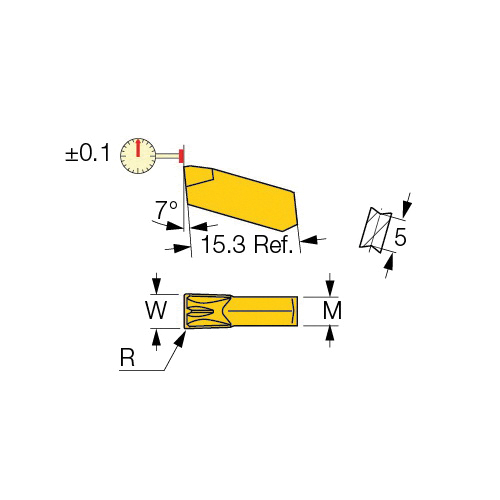

Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3 Insert, 3 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 15.3 mm Length, 0.22 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GIM 3 IC20, 90 deg Included Angle, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- W-type chipformer, with a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Corner Radius0.22 mm
Cutting Width3 mm
FinishUncoated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3
Insert StyleGIM
ISO CodeGIM 3 IC20
Lead Angle DirectionNeutral
Length15.3 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
