Iscar ISCAR 6099906

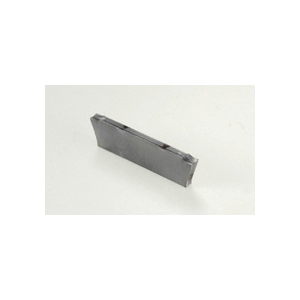

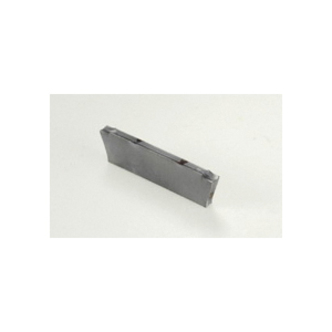

Iscar 6099906 DO-GRIP Cut-Off/Parting Insert, 1402J Insert, DGN Insert, Material Grade: M, P, 1.4 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated

Invoice description: Dgn 1402j Ic354

UNSPSC: 23242107

Manufacturer PN: 6099906

^$38.58 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 1402J Insert, 1.4 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.4 mm Width, 15.8 mm Length, J Chipbreaker, 0.16 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: DGN 1402J IC354, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P

Features
First choice for soft materials, parting of tubes, small diameters and thin walled parts
General applications on low carbon, alloy and austenitic stainless steel
Low-to-medium feeds
IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
High toughness
For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
