Iscar ISCAR 6098458

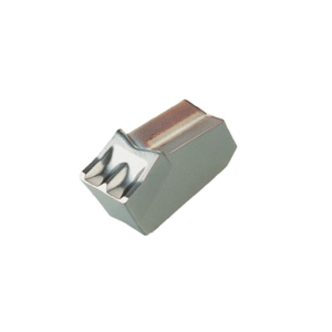

Iscar 6098458 SELF-GRIP Cut-Off/Parting Insert, 3W Insert, GFN Insert, Material Grade: M, P, S, 3 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Gfn 3w Ic328
In stock
(9)
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 3W Insert, 3 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, W Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GFN 3W IC328, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- Parting and grooving single sided insert
- IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
- Very high toughness
- For milling, parting and grooving of steel, stainless and alloy steels at low-to medium cutting speeds and for unstable machining condition
- W-type chipformer with a central ridge that forms double cavities on the rake face
- Most efficient on alloy and stainless steel
Specifications
ApplicationExternal Grooving, Groove Turning and Internal Grooving
ChipbreakerW
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size3W
Insert StyleGFN
ISO CodeGFN 3W IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3 mm
Additional Information
Standards/ApprovalISO 9001
Country of OriginIS
