Iscar ISCAR 6097806

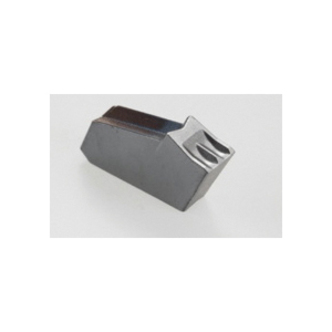

Iscar 6097806 SELF-GRIP Cut-Off/Parting Insert, 3W Insert, GFN Insert, Material Grade: M, P, 3 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated

UNSPSC: 23242107
Manufacturer PN: 6097806
$20.80 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 3W Insert, 3 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, W Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GFN 3W IC354, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P

  • Features

  • W-type chipformer, with a central ridge that forms double cavities on the rake face
  • Most efficient on alloy steel
  • IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
  • High toughness
  • For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds

Specifications

ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerW
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size3W
Insert StyleGFN
ISO CodeGFN 3W IC354
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3 mm
