Iscar ISCAR 6097015

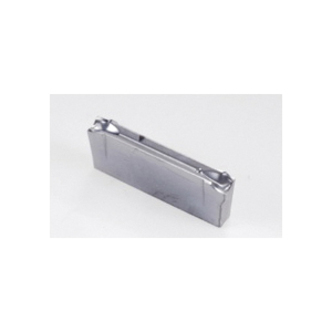

Iscar 6097015 DO-GRIP Cut-Off/Parting Insert, 3102J Insert, DGR Insert, Material Grade: M, P, S, 3.1 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Dgr 3102j-15d Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 3102J Insert, 3.1 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 21 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGR 3102J-15D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3102J
Insert StyleDGR
ISO CodeDGR 3102J-15D IC328
Lead Angle15 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
Additional Information
Country of OriginIL
