Iscar ISCAR 6095707

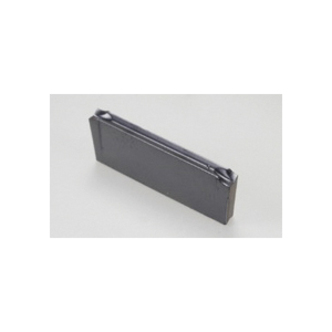

Iscar 6095707 DO-GRIP Cut-Off/Parting Insert, 2200JS Insert, DGR Insert, Material Grade: H, K, M, P, S, 2.2 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 2200JS Insert, 2.2 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 20.6 mm Length, JS Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 2200JS-15D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- JS chipbreaker - has a sharp corner
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJS
Corner Radius0.02 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size2200JS
Insert StyleDGR
ISO CodeDGR 2200JS-15D IC908
Lead Angle15 deg
Lead Angle DirectionRight Hand
Length20.6 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
