Iscar ISCAR 6094895

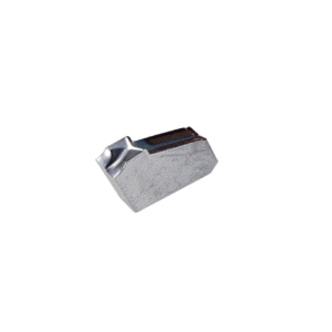

Iscar 6094895 SELF-GRIP Cut-Off/Parting Insert, 4J-6D Insert, GFR Insert, Material Grade: M, P, 4 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Gfr 4j - 6d Ic354
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFR Insert, 4J-6D Insert, 4 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, J Chipbreaker, 0.25 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GFR 4J - 6D IC354, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with a positive rake, used at low-to-medium feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.25 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size4J-6D
Insert StyleGFR
ISO CodeGFR 4J - 6D IC354
Lead Angle6 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIL
