Iscar ISCAR 6094435

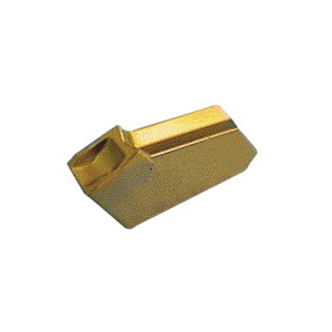

Iscar 6094435 SELF-GRIP Cut-Off/Parting Insert, 2.4-8D Insert, GFR Insert, Material Grade: M, P, 2.4 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Gfr 2.4 - 8d Ic354
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFR Insert, 2.4-8D Insert, 2.4 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.4 mm Width, 8D Chipbreaker, 0.16 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GFR 2.4 - 8D IC354, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Chipbreaker8D
Corner Radius0.16 mm
Cutting Width2.4 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size2.4-8D
Insert StyleGFR
ISO CodeGFR 2.4 - 8D IC354
Lead Angle8 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width2.4 mm
Additional Information
Country of OriginIL
