Iscar ISCAR 6094205

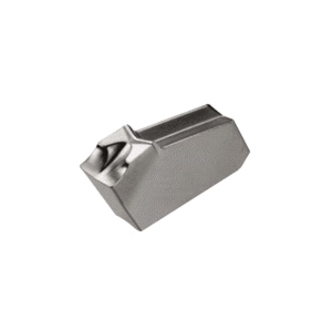

Iscar 6094205 SELF-GRIP Cut-Off/Parting Insert, 1.6J Insert, GFN Insert, Material Grade: M, P, S, 1.6 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Gfn 1.6j Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 1.6J Insert, 1.6 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.6 mm Width, J Chipbreaker, 0.16 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GFN 1.6J IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with a positive rake, used at low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.16 mm
Cutting Width1.6 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size1.6J
Insert StyleGFN
ISO CodeGFN 1.6J IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width1.6 mm
Additional Information
Country of OriginIL
