Iscar ISCAR 6093189

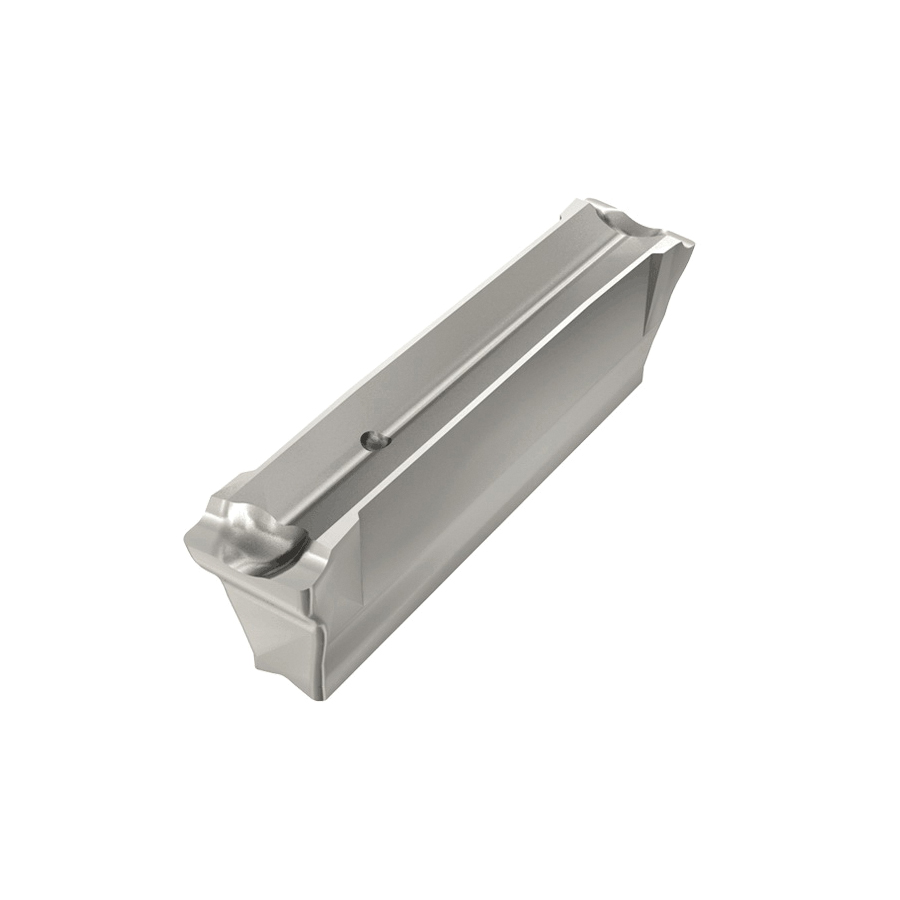

Iscar 6093189 DO-GRIP Cut-Off/Parting Insert, 2202UT Insert, DGN Insert, Material Grade: H, K, M, P, S, 2.2 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgn 2202ut Ic908
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 2202UT Insert, 2.2 mm Cutting Width, Neutral Lead Angle Direction, Rectangle Shape, 2.2 mm Width, 19.6 mm Length, UT Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGN 2202UT IC908, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- A chipformer for use at low feeds
- Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials
- The narrow chipformer design ensures short deformed chips
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions

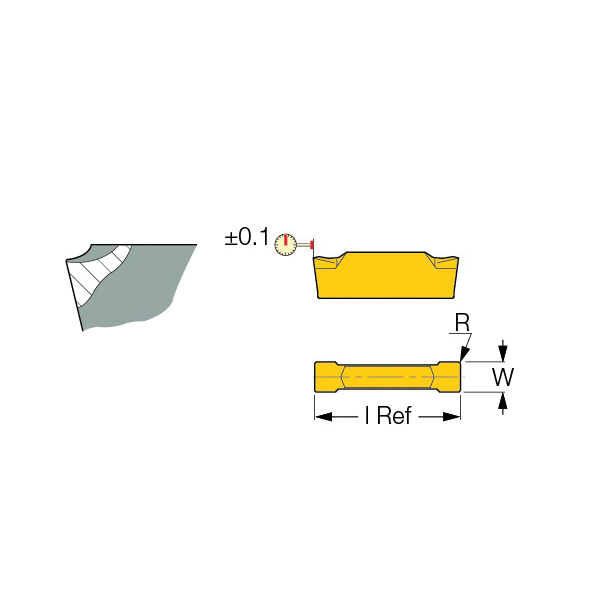

Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerUT
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size2202UT
Insert StyleDGN
ISO CodeDGN 2202UT IC908
Lead Angle DirectionNeutral
Length19.6 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
