Iscar ISCAR 6091716

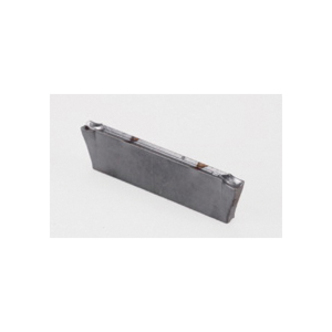

Iscar 6091716 DO-GRIP Cut-Off/Parting Insert, 1402J Insert, DGN Insert, Material Grade: M, P, S, 1.4 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Dgn 1402j Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 1402J Insert, 1.4 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.4 mm Width, 15.8 mm Length, J Chipbreaker, 0.16 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGN 1402J IC328, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.16 mm
Cutting Width1.4 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size1402J
Insert StyleDGN
ISO CodeDGN 1402J IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Length15.8 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width1.4 mm
Additional Information
Country of OriginIL
