Iscar ISCAR 6090356

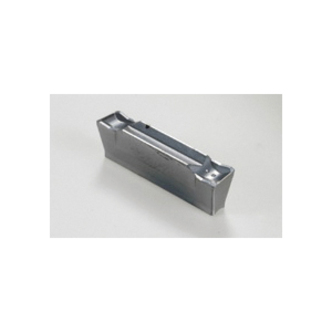

Iscar 6090356 DO-GRIP Cut-Off/Parting Insert With Coolant Through Channel, 4003C Insert, DGN Insert, Material Grade: H, K, M, N, P, S, 4 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC308
Invoice description:
Dgn 4003c Ic308
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 4003C Insert, 4 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 18.8 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC308, ISO Code: DGN 4003C IC308, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC308 grade - a tough sub-micron PVD-coated grade
- Suitable for low-to-medium cutting speed
- Designed for machining of heat resistant alloys, austenitic stainless steel, hard materials and carbon steel at interrupted cut and unfavorable conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.3 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size4003C
Insert StyleDGN
ISO CodeDGN 4003C IC308
Lead Angle0 deg
Lead Angle DirectionNeutral
Length18.8 mm
Manufacturers GradeIC308
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIL
