Iscar ISCAR 6011437

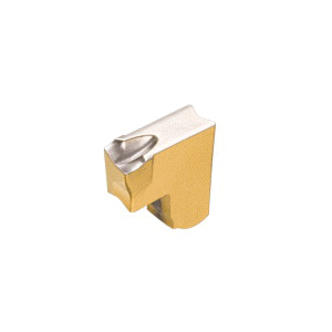

Iscar 6011437 TANG-GRIP Parting Insert, R4J-4D TAGR Insert, Material Grade: H, K, M, N, P, S, 4 mm W Cutting, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturer's Grade: IC808, PVD Coated
Iscar Parting Insert, Series: TANG-GRIP, TAGR Insert, R4J-4D Insert, 4 mm Cutting Width, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangular Shape, 4 mm Width, J Chipbreaker, 0.24 mm Corner Radius, Manufacturer's Grade: IC808, ISO Code: TAG R4J-4D IC808, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials, alloy steel and austenitic stainless steel
- Parting of tubes, small diameters and thin walled parts
- Cutting edge with positive rake used at low-to-medium feeds
- JS - sharp corner
- Tang-grip clamping system - very rigid clamping in a tangentially oriented pocket
- Enables machining at very high feed rates and provides excellent straightness and surface finish
- Recommended for parting large diameter parts and for interrupted cuts
- Offers a free, unobstructed chip flow
- Excellent tool and pocket life
- IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new 'SUMO TEC' TiAlN PVD coating

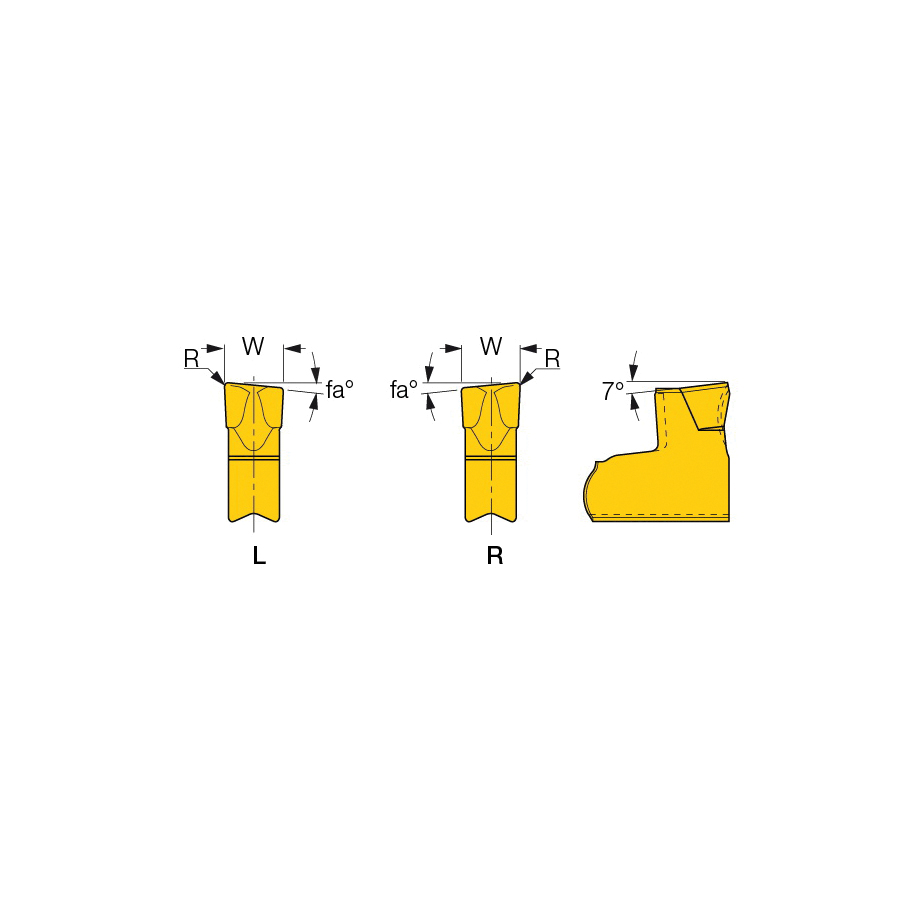

Specifications
ApplicationFor groove turning applications
SeriesTANG-GRIP
Insert StyleTAGR
Insert SizeR4J-4D
Cutting Width4 mm
Lead Angle4 deg
Lead Angle DirectionRight Hand
Relief Angle7 deg
ShapeRectangular
