Iscar ISCAR 6011434

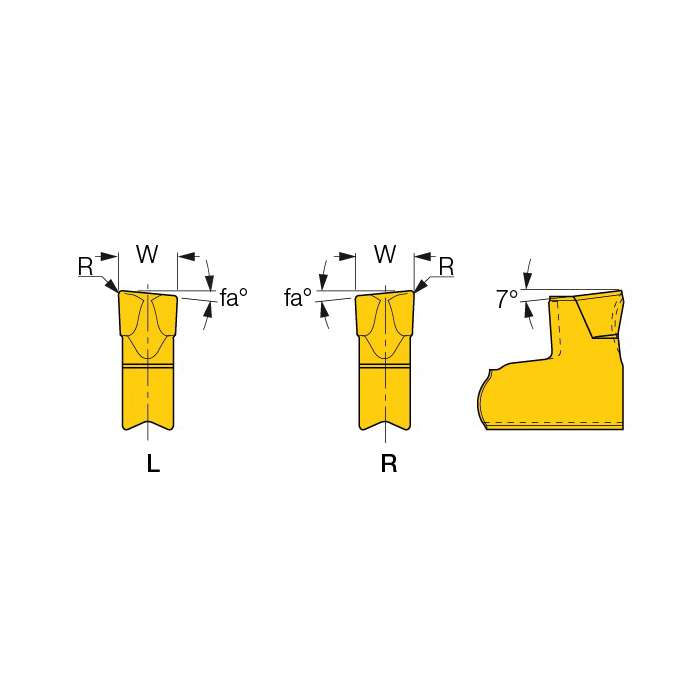

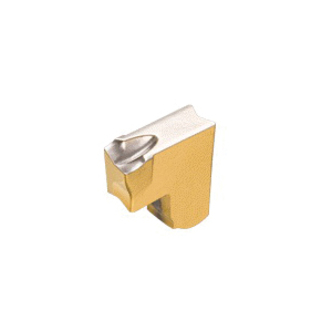

Iscar 6011434 TANG-GRIP Parting Insert, R3J-15D Insert, TAG Insert, Material Grade: H, K, M, P, S, 3 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC808, PVD Coated
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, R3J-15D Insert, 3 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: TAG R3J-15D IC808, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials, alloy steel and austenitic stainless steel
- Parting of tubes, small diameters and thin walled parts
- Cutting edge with positive rake used at low-to-medium feeds
- IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new SUMO TEC TiAlN PVD coating
- Provides high wear resistance
- Recommended for a very wide range of materials
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert SizeR3J-15D
Insert StyleTAG
ISO CodeTAG R3J-15D IC808
Lead Angle15 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3 mm
