Iscar ISCAR 6011396

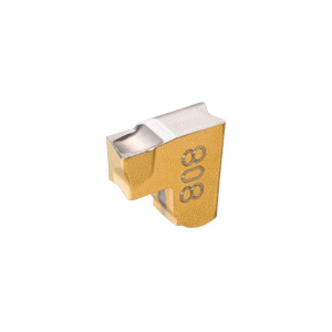

Iscar 6011396 TANG-GRIP Parting Insert, R3C-6D Insert, TAGR Insert, Material Grade: M, P, S, 3 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC830, PVD Coated
Factory Order

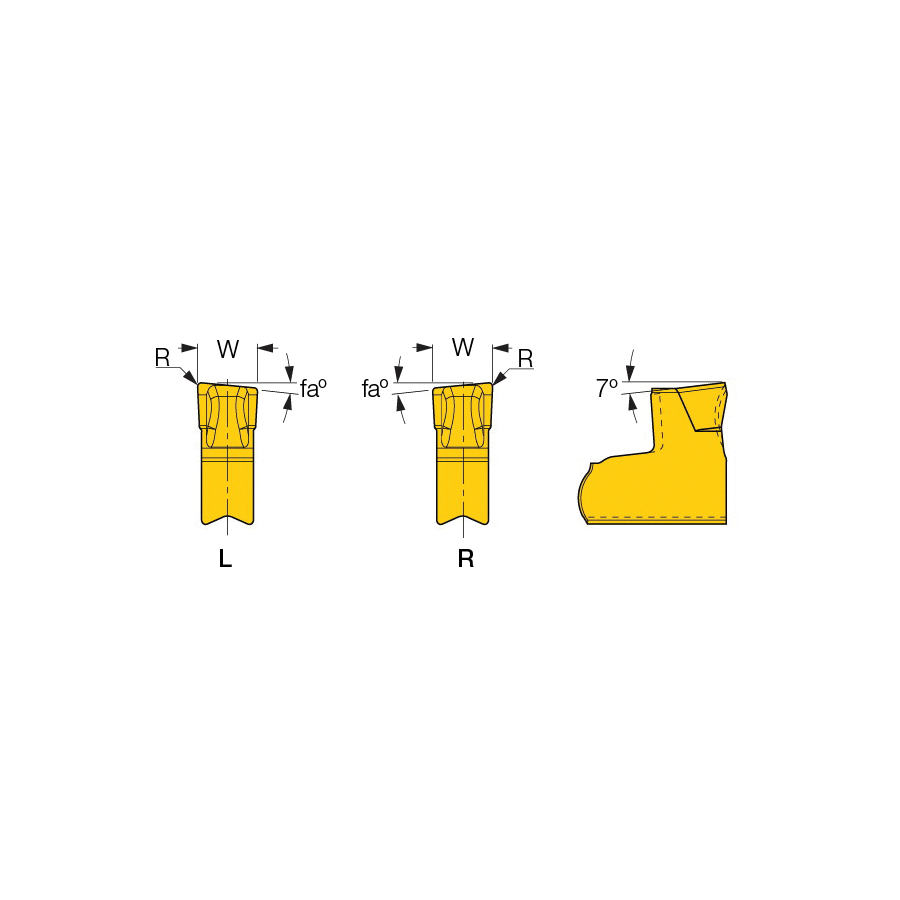

Iscar Parting Insert, Series: TANG-GRIP, TAGR Insert, R3C-6D Insert, 3 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: TAG R3C-6D IC830, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- Tang-Grip clamping system - very rigid clamping in a tangentially oriented pocket
- Enables machining at very high feed rates and provides excellent straightness and surface finish
- Recommended for parting large diameter parts and for interrupted cuts
- Offers a free, unobstructed chip flow
- Excellent tool and pocket life
- IC830 grade - a SUMO TEC AlTiN+TiN PVD-coated grade
- Recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel
Specifications
ApplicationFor groove turning applications
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert SizeR3C-6D
Insert StyleTAGR
ISO CodeTAG R3C-6D IC830
Lead Angle6 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3 mm
