Iscar ISCAR 6011389

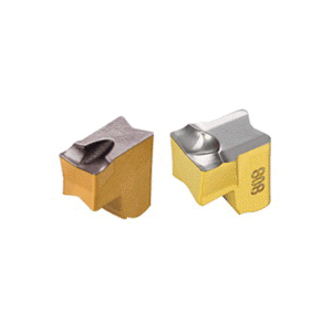

Iscar 6011389 TANG-GRIP Parting Insert, N4J Insert, TAG Insert, Material Grade: M, P, S, 4 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC830, PVD Coated
Invoice description:
Tag N4j Ic830
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, N4J Insert, 4 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, J Chipbreaker, 0.24 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: TAG N4J IC830, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, alloy steel and austenitic stainless steel
- Parting of tubes, small diameters and thin walled parts
- Cutting edge with positive rake used at low-to-medium feeds
- IC830 grade - a SUMO TEC AlTiN+TiN PVD-coated grade
- Recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel
- High toughness and wear resistance

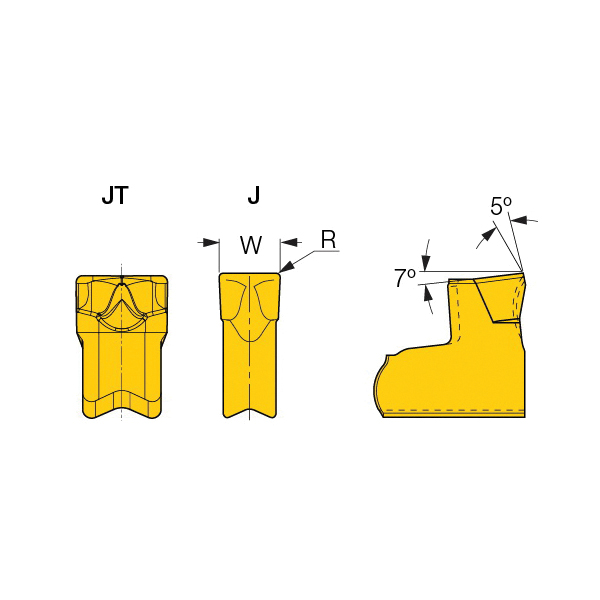

Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.24 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert SizeN4J
Insert StyleTAG
ISO CodeTAG N4J IC830
Lead Angle DirectionNeutral
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIL
