Iscar ISCAR 6011387

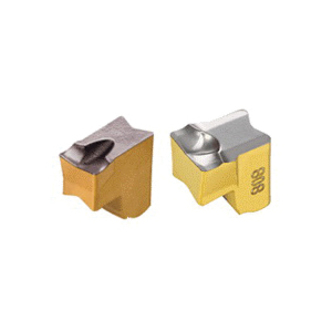

Iscar 6011387 TANG-GRIP Parting Insert, N3J TAGN Insert, Material Grade: M, P, S, 3.05 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturer's Grade: IC830, PVD Coated

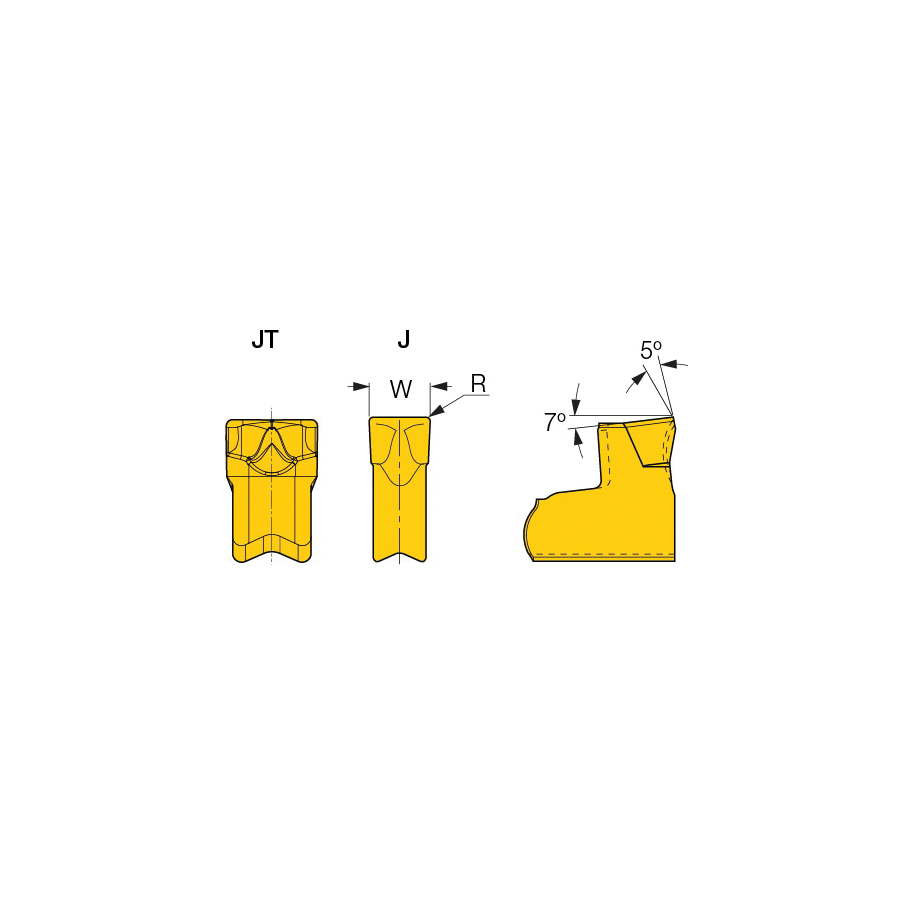

Iscar Parting Insert, Series: TANG-GRIP, TAGN Insert, N3J Insert, 3.05 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangular, 3.05 mm Width, J Chipbreaker, 0.2 mm Corner Radius, Manufacturer's Grade: IC830, ISO Code: TAG N3J IC830, 90 deg Included Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, alloy steel and austenitic stainless steel
- Parting of tubes, small diameters and thin walled parts
- Cutting edge with positive rake used at low-to-medium feeds
- JS - sharp corner
- Tang-grip clamping system - very rigid clamping in a tangentially oriented pocket
- Enables machining at very high feed rates and provides excellent straightness and surface finish
- Recommended for parting large diameter parts and for interrupted cuts
- Offers a free, unobstructed chip flow
- Excellent tool and pocket life
- IC830 grade - a 'SUMO TEC' AlTiN+TiN PVD-coated grade
Specifications
ApplicationExternal Grooving, Groove Turning, Side Slotting and Slitting
SeriesTANG-GRIP
Insert StyleTAGN
Insert SizeN3J
Cutting Width3.05 mm
Lead Angle0 deg
Lead Angle DirectionNeutral
Relief Angle7 deg
ShapeRectangular
