Iscar ISCAR 6011386

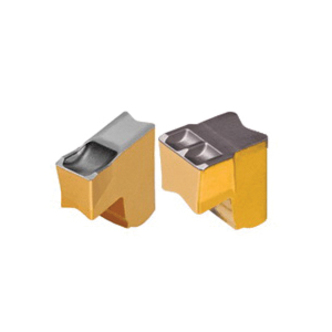

Iscar 6011386 TANG-GRIP Parting Insert, N3C Insert, TAG Insert, Material Grade: M, P, S, 3.05 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC830, PVD Coated
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, N3C Insert, 3.05 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.05 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: TAG N3C IC830, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity (except 7 and 12 mm with double cavity), negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC830 grade - a SUMO TEC AlTiN+TiN PVD-coated grade
- Recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel
- High toughness and wear resistance

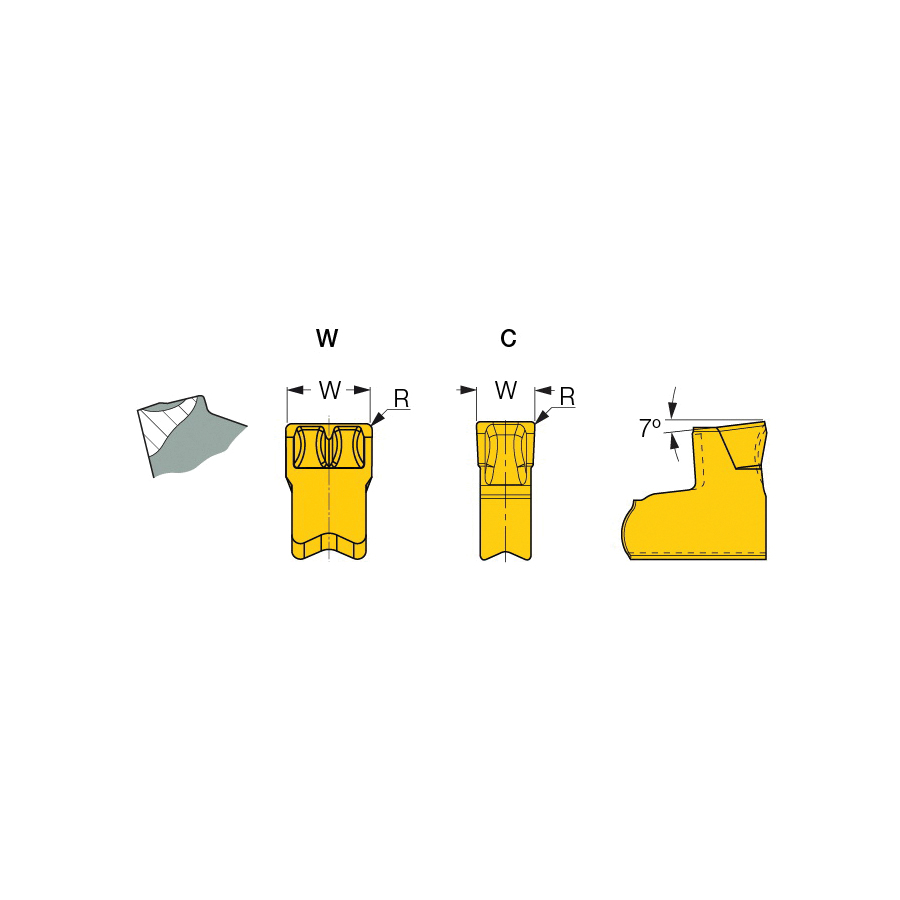

Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.05 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert SizeN3C
Insert StyleTAG
ISO CodeTAG N3C IC830
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3.05 mm
