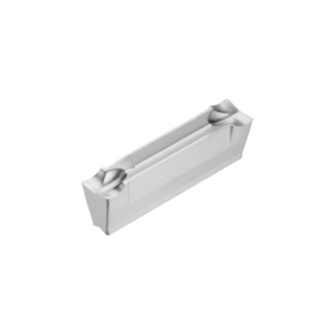

Iscar ISCAR 6011382

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 4003J Insert, 4 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 18.9 mm Length, JT Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: DGN 4003J IC808, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S

• Features

• First choice for soft materials, parting of tubes, small diameters and thin walled parts
• General applications on low carbon, alloy and austenitic stainless steel
• Low-to-medium feeds
• JS - sharp corner
• IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new SUMO TEC TiAlN PVD coating
• Provides high wear resistance
• Recommended for a very wide range of materials
• JT-type chipbreaker - the JT chipformer design is based on the J-type chipformer, with a t-land reinforced frontal cutting edge length
• JT chipformer provides a solution for the intermediate range between the strong and negative C-type configuration and the positive edged J-type chipformer
• The JT chipformer can be used on a wide range of materials, including soft or hard alloy and stainless steel, high temperature alloys and also cast iron
