Iscar ISCAR 6011377

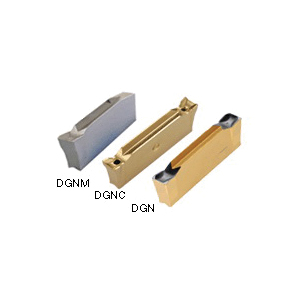

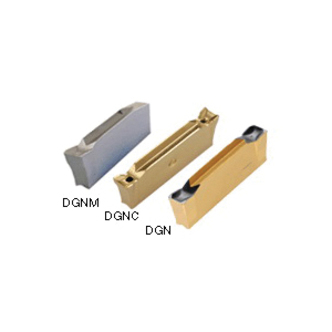

Iscar 6011377 DO-GRIP Cut-Off/Parting Insert With Coolant Through Channel, 2202C Insert, DGN Insert, Material Grade: H, K, M, P, S, 2.2 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC808, PVD Coated
Invoice description:
Dgn 2202c Ic808
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 2202C Insert, 2.2 mm Cutting Width, Neutral Lead Angle Direction, Rectangle Shape, 2.2 mm Width, 19.8 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: DGN 2202C IC808, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- Used for parting bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new SUMO TEC TiAlN PVD coating
- Provides high wear resistance
- Recommended for a very wide range of materials
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size2202C
Insert StyleDGN
ISO CodeDGN 2202C IC808
Lead Angle DirectionNeutral
Length19.8 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
