Iscar ISCAR 6004542

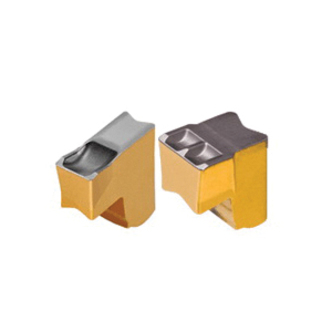

Iscar 6004542 TANG-GRIP Parting Insert, N4M Insert, TAGN Insert, Material Grade: M, P, S, 4 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC830, PVD Coated

Invoice description: Tag N4m Ic830

UNSPSC: 23291503

Manufacturer PN: 6004542

^$22.40 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

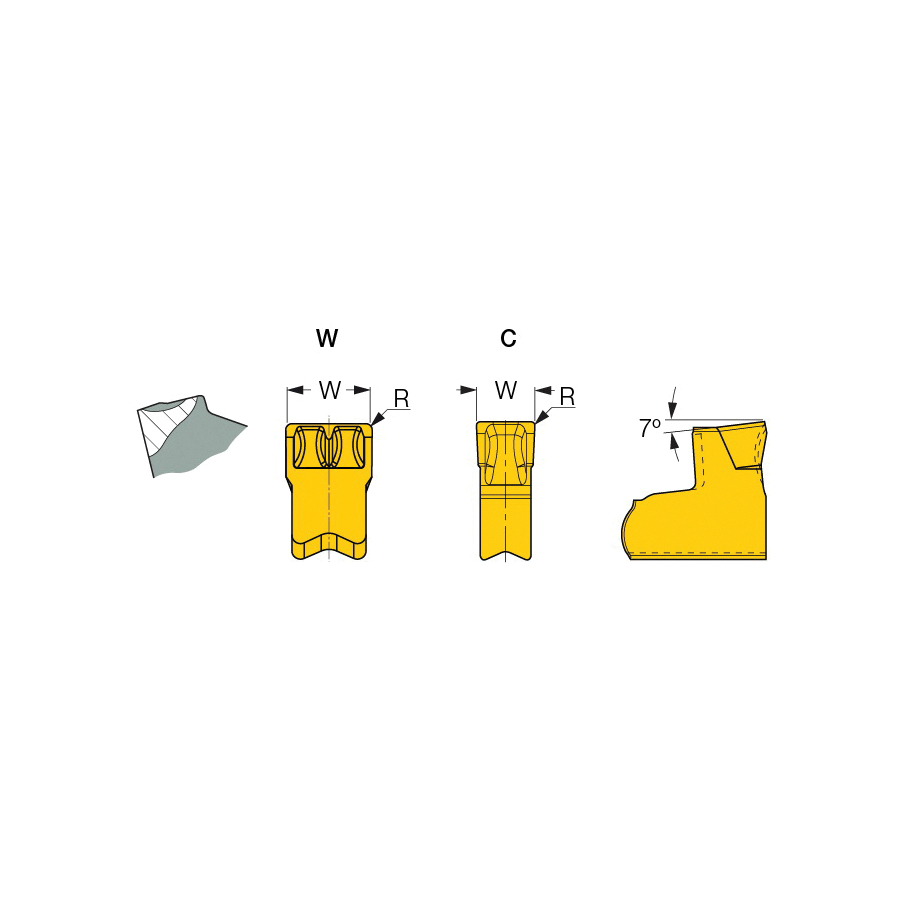

Iscar Parting Insert, Series: TANG-GRIP, TAGN Insert, N4M Insert, 4 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, M Chipbreaker, 0.24 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: TAG N4M IC830, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S

Features
First choice for the parting of bars, hard materials and tough applications
A positive rake, single cavity (except 7 mm and 12 mm with double cavity), negative land and shoulders, provides extra cutting edge strength
Medium-to-high feeds
Tang-Grip clamping system - very rigid clamping in a tangentially oriented pocket
Enables machining at very high feed rates and provides excellent straightness and surface finish
Recommended for parting large diameter parts and for interrupted cuts
Offers a free, unobstructed chip flow
Excellent tool and pocket life
IC830 grade - a SUMO TEC AlTiN+TiN PVD-coated grade
Recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel
