Iscar ISCAR 6004484

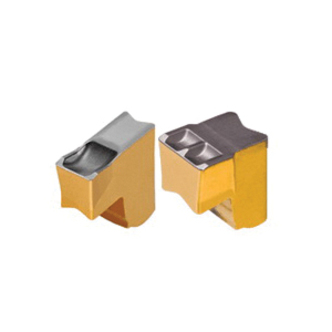

Iscar 6004484 TANG-GRIP Parting Insert, N3CB Insert, TAG Insert, Material Grade: H, K, M, P, S, 3 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC808, PVD Coated
Invoice description:
Tag N3cb Ic808
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, N3CB Insert, 3 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, CB Chipbreaker, 0.35 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: TAG N3CB IC808, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity (except 7 and 12 mm with double cavity), negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new SUMO TEC TiAlN PVD coating
- Provides high wear resistance
- Recommended for a very wide range of materials

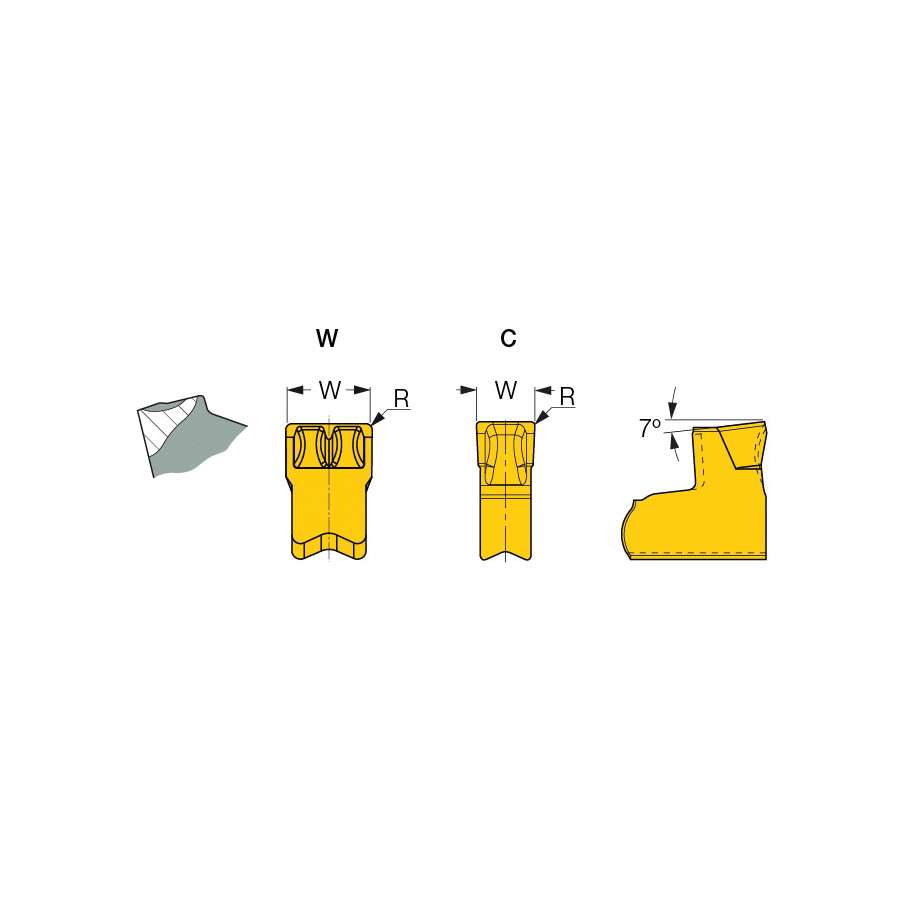

Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerCB
Corner Radius0.35 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert SizeN3CB
Insert StyleTAG
ISO CodeTAG N3CB IC808
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
