Iscar ISCAR 6004438

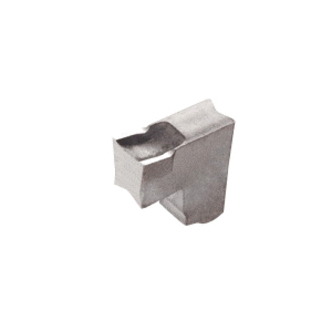

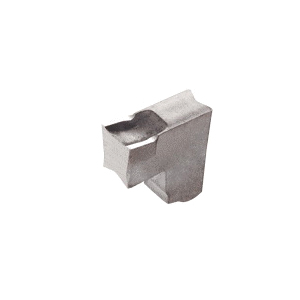

Iscar 6004438 TANG-GRIP Parting Insert, N4A Insert, TAGN Insert, Material Grade: H, K, M, N, P, S, 4.05 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Tag N4a Ic20
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAGN Insert, N4A Insert, 4.05 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4.05 mm Width, A Chipbreaker, 0.24 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: TAG N4A IC20, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, P, S
Features
- Used for machining aluminum
- Tang-grip clamping system - very rigid clamping in a tangentially oriented pocket
- Enables machining at very high feed rates and provides excellent straightness and surface finish
- Recommended for parting large diameter parts and for interrupted cuts
- Offers a free, unobstructed chip flow
- Excellent tool and pocket life
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
- An uncoated carbide grade
- A-type chipbreaker - positive rake, sharp edge

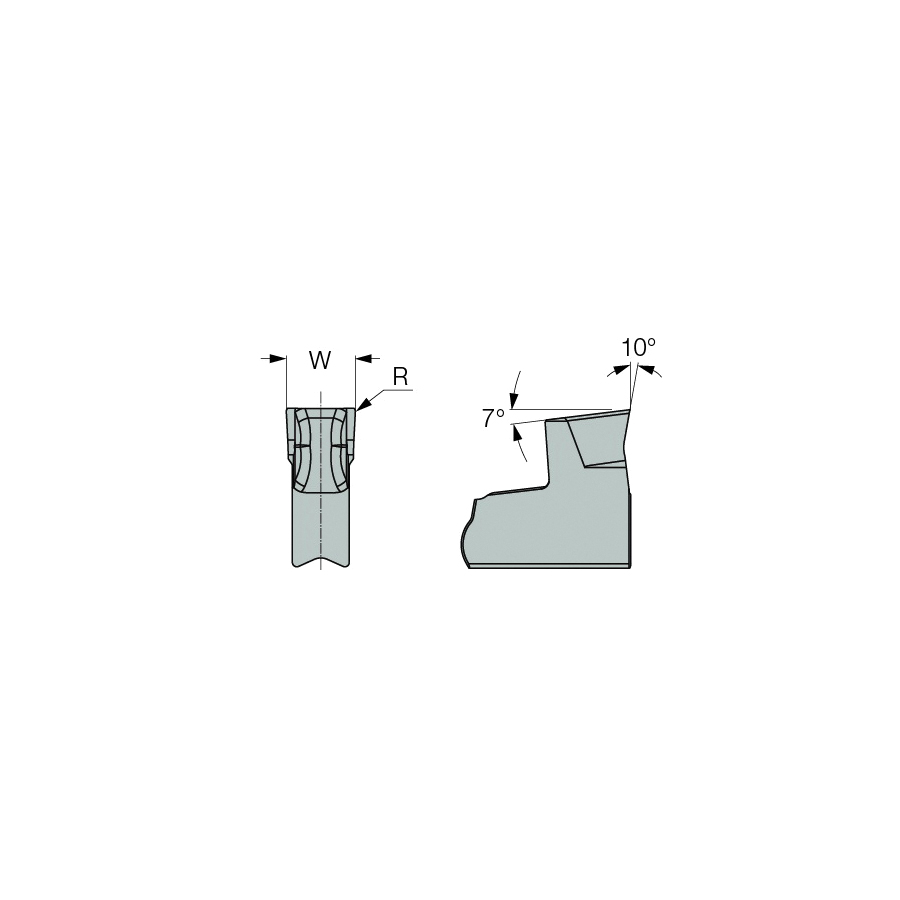

Specifications
ApplicationExternal Grooving, Groove Turning, Side Slotting and Slitting
ChipbreakerA
Corner Radius0.24 mm
Cutting Width4.05 mm
FinishUncoated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert SizeN4A
Insert StyleTAGN
ISO CodeTAG N4A IC20
Lead Angle DirectionNeutral
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width4.05 mm
Additional Information
Country of OriginIS
