Iscar ISCAR 6004427

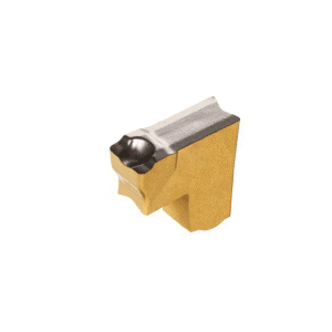

Iscar 6004427 TANG-GRIP Parting Insert, N3UT Insert, TAG Insert, Material Grade: M, P, S, 3 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC830, PVD Coated
Invoice description:
Tag N3ut Ic830
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, N3UT Insert, 3 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, UT Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: TAG N3UT IC830, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- A chipformer for use at low feeds
- Recommended for Cr-Ni alloys (especially in the bearing industry), ductile materials and low carbon steel
- The narrow chipformer design ensures short deformed chips
- IC830 grade - a SUMO TEC AlTiN+TiN PVD-coated grade
- Recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel
- High toughness and wear resistance
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerUT
Corner Radius0.3 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert SizeN3UT
Insert StyleTAG
ISO CodeTAG N3UT IC830
Lead Angle DirectionNeutral
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
