Iscar ISCAR 6003684

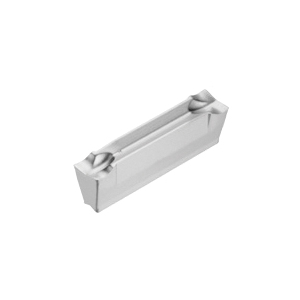

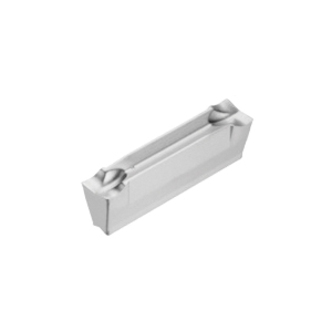

Iscar 6003684 DO-GRIP Cut-Off/Parting Insert, 3102JT Insert, DGN Insert, Material Grade: H, K, M, P, S, 3.1 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC808, PVD Coated

UNSPSC: 23242107
Manufacturer PN: 6003684
$38.58 EA
Factory Order
Estimated to ship in 14 days
QTY:

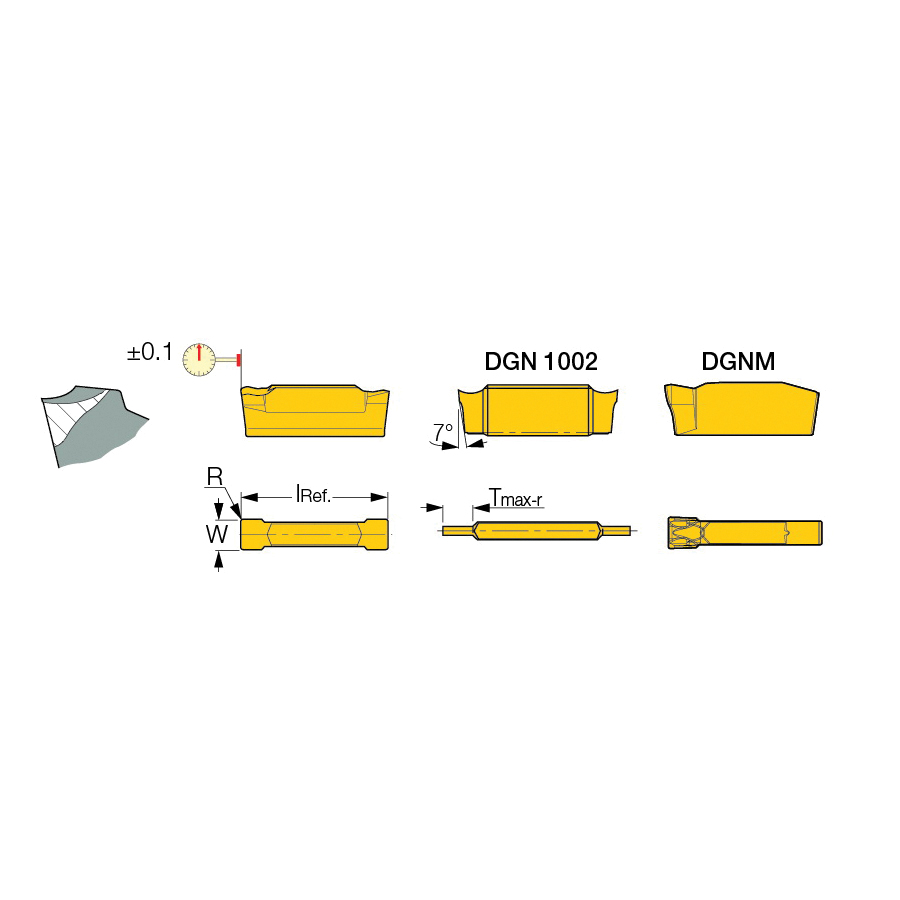

Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 3102JT Insert, 3.1 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 20.1 mm Length, JT Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: DGN 3102JT IC808, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S

  • Features

  • First choice for soft materials, parting of tubes, small diameters and thin walled parts
  • General applications on low carbon, alloy and austenitic stainless steel
  • Low-to-medium feeds
  • IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new SUMO TEC TiAlN PVD coating
  • Provides high wear resistance
  • Recommended for a very wide range of materials

Specifications

ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJT
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3102JT
Insert StyleDGN
ISO CodeDGN 3102JT IC808
Lead Angle0 deg
Lead Angle DirectionNeutral
Length20.1 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
