Iscar ISCAR 6003654

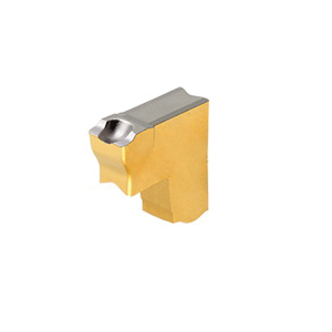

Iscar 6003654 TANG-GRIP Parting Insert, N3UT Insert, TAG Insert, Material Grade: H, K, M, P, S, 3 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC808, PVD Coated
Invoice description:
Tag N3ut Ic808
Factory Order

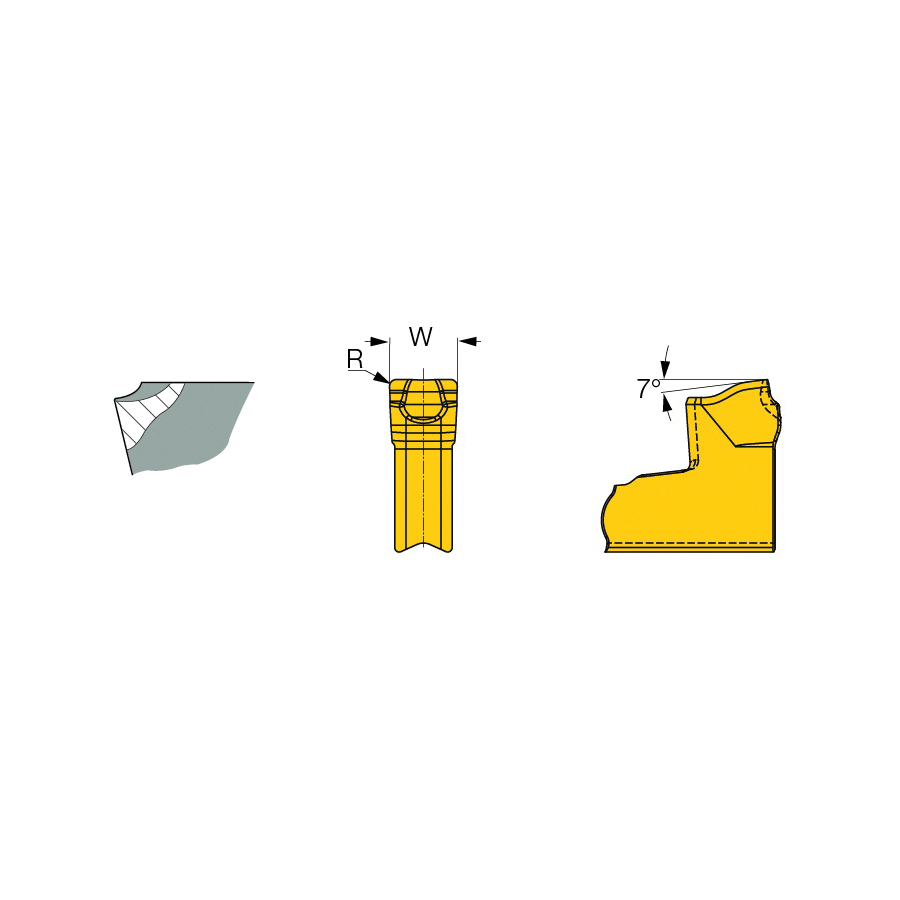

Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, N3UT Insert, 3 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, UT Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: TAG N3UT IC808, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- A chipformer for use at low feeds
- Recommended for Cr-Ni alloys (especially in the bearing industry), ductile materials and low carbon steel
- The narrow chipformer design ensures short deformed chips
- IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new SUMO TEC TiAlN PVD coating
- Provides high wear resistance
- Recommended for a very wide range of materials
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerUT
Corner Radius0.3 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert SizeN3UT
Insert StyleTAG
ISO CodeTAG N3UT IC808
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
