Iscar ISCAR 6003647

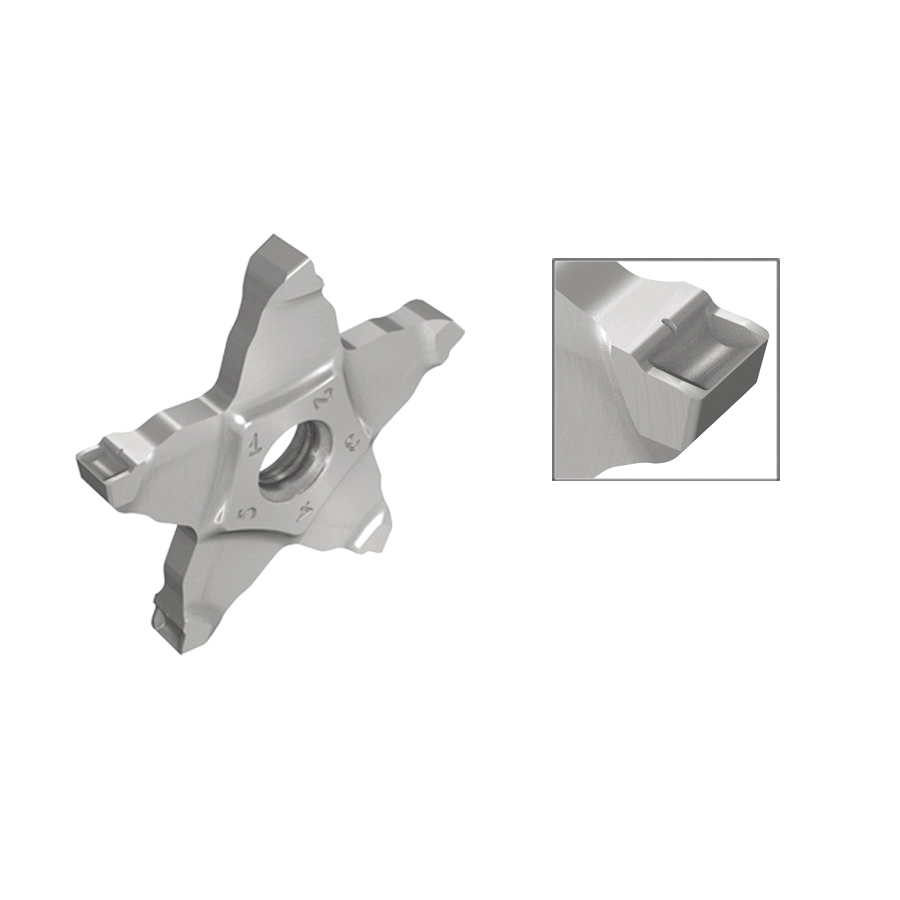

Iscar 6003647 PENTACUT Parting Insert, 34N150C015 PENTA Insert, Material Grade: H, K, M, P, S, 0.0591 in W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Penta 34n150c015 Ic908
Factory Order

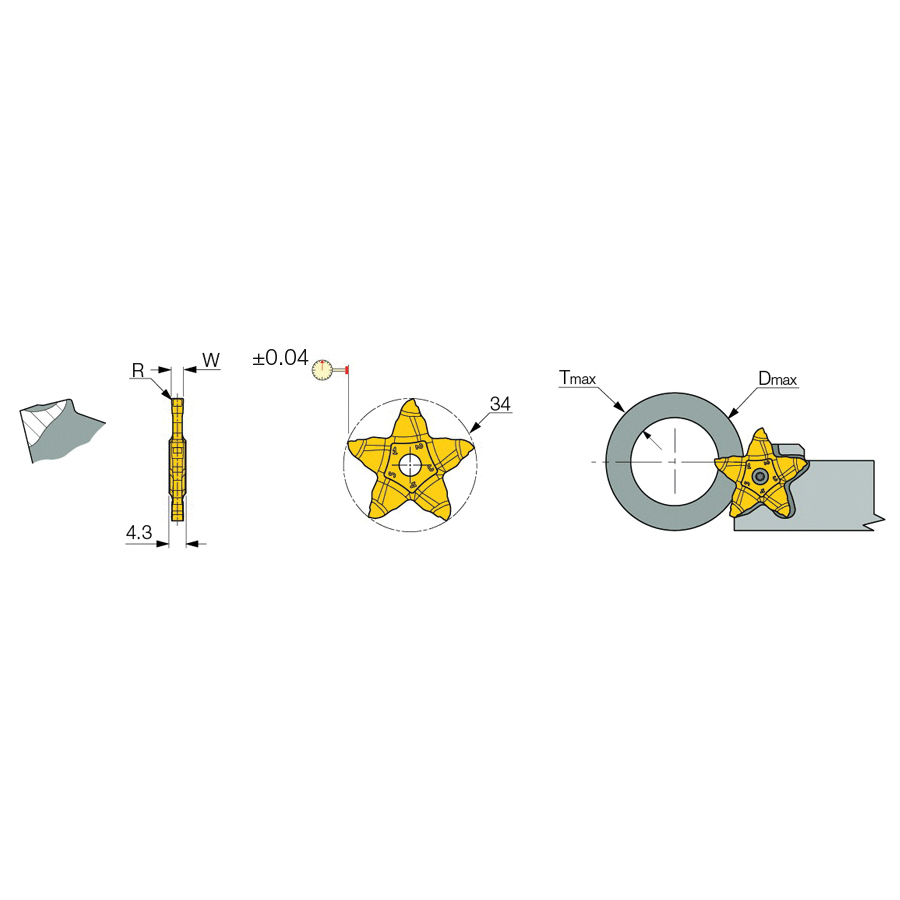

Iscar Parting Insert, Series: PENTACUT, PENTA Insert, 34N150C015 Insert, 0.0591 in Cutting Width, Neutral Lead Angle Direction, Pentagonal, 4.3 mm Thickness, 1.5 mm Width, 0.15 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: PENTA 34N150C015 IC908, 108 deg Included Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving and Groove Turning
Corner Radius0.15 mm
Cutting Width0.0591 in
FinishPVD Coated
Hand of InsertNeutral
Included Angle108 deg
Insert Size34N150C015
Insert StylePENTA
ISO CodePENTA 34N150C015 IC908
Lead Angle DirectionNeutral
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesPENTACUT
ShapePentagonal
Thickness4.3 mm
Width1.5 mm
Additional Information
Country of OriginIL
