Iscar ISCAR 6003626

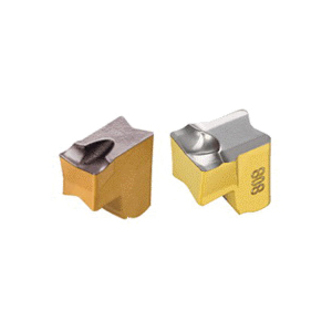

Iscar 6003626 TANG-GRIP Cut-Off/Parting Insert, N3J Insert, TAGN Insert, Material Grade: H, K, M, P, S, 3.05 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC807, PVD Coated
Invoice description:
Tag N3j Ic807
Factory Order

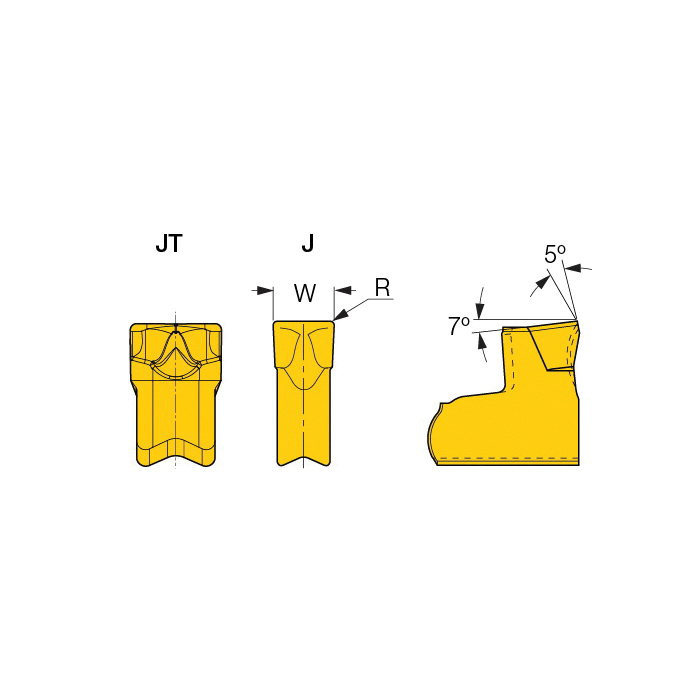

Iscar Cut-Off/Parting Insert, Series: TANG-GRIP, TAGN Insert, N3J Insert, 3.05 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.05 mm Width, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC807, ISO Code: TAG N3J IC807, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials, alloy steel and austenitic stainless steel
- Parting of tubes, small diameters and thin walled parts
- Cutting edge with positive rake used at low-to-medium feeds
- IC807 grade - a tough sub-micron substrate, SUMO TEC TiAlN PVD-coated
- Suitable for low-to-medium cutting speed
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width3.05 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert SizeN3J
Insert StyleTAGN
ISO CodeTAG N3J IC807
Lead Angle DirectionNeutral
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3.05 mm
Additional Information
Country of OriginIL
